Brand: Belden
|
SKU:
B9942-100
Belden 9942 060100 | 9942 Series, Computer Cable, 6-Conductor, 22 AWG, Tinned Copper, PVC Jacket, Chrome, 100 ft.
Regular price
$6.76
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Belden 9942 060100 | 9942 Series, Computer Cable, 6-Conductor, 22 A...
Regular price
$6.76
Unit price
Description
Description

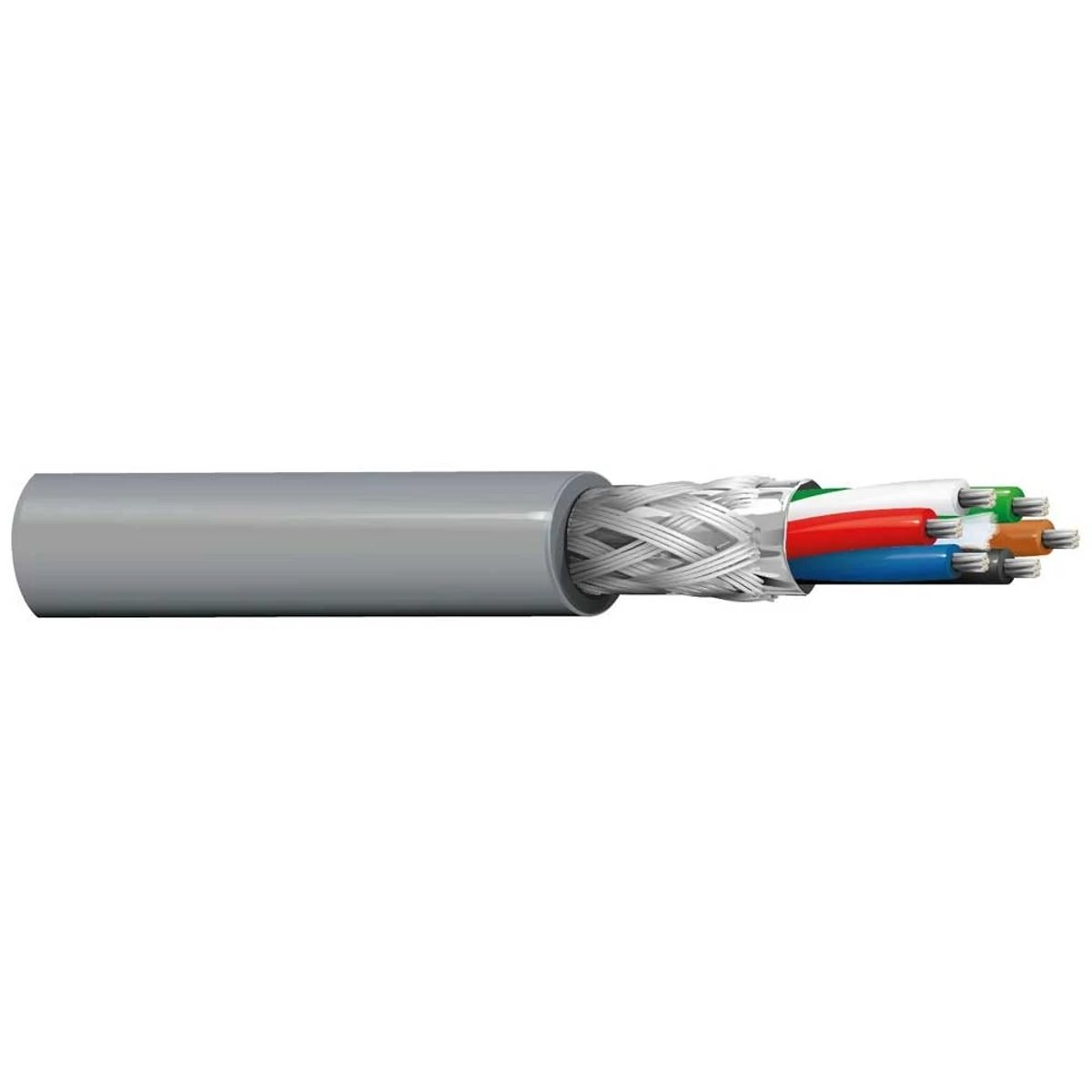

The 9942 060100 is a 100ft 6-conductor shielded Computer Cable with 22AWG stranded (7 x 30) tinned copper conductor, S-R PVC insulation, overall Beldfoil aluminum foil-polyester tape (100% coverage) + tinned copper braid shield (65% coverage)
Key Features
- 35pF/ft Conductor to conductor nominal capacitance
- 63pF/ft Conductor to other conductor and shield nominal capacitance
- 14.7?äª/1000ft at 20°C Nominal conductor DC-resistance
- 7.9?äª/1000ft at 20°C Nominal outer shield DC-resistance
- UL1685 FT4 Loading flame tested
Specifications
Specifications
Additional Specifications
| ECCN | EAR99 |
|---|---|
| Country of Origin | US - United States |
| UNSPSC | 26121500 |
| Series | 9942 Series |
| Length | 100 ft. |
| Additional Features | High-Speed, Low-Distortion Data Handling |
| Cable Type | Non-Plenum |
| Conductor Size | 22 AWG |
| Conductor Material | Tinned Copper |
| Jacket Material | PVC |
| Insulation Material | Semi-Rigid Polyvinyl Chloride |
| No. of Conductors | 6 |
| Shielded | Aluminum/Polyester Tape |
