Brand: Belden
|
SKU:
B9944-1000-DY6

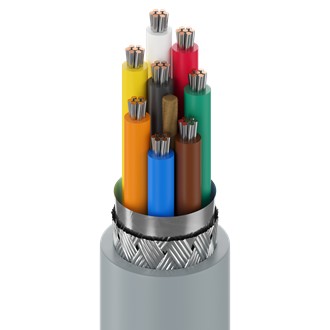

Belden 9944 | Computer EIA RS-232 Cable, #22-8c, SR-PVC, O/A Foil+Braid, PVC Jacket, CMG
Regular price
$1.46
Unit price
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Belden 9944 | Computer EIA RS-232 Cable, #22-8c, SR-PVC, O/A Foil+B...
Regular price
$1.46
Unit price
Brand: Belden
|
SKU:
B9944-1000-DY6
Regular price
$1.46
Unit price
Description
Description
Belden 9944 | Computer EIA RS-232 Cable, #22-8c, SR-PVC, O/A Foil+Braid, PVC Jacket, CMG
Computer EIA RS-232 Cable, 22 AWG stranded (7x30) tinned copper conductors, semi-rigid PVC insulation, overall Beldfoil® (100% coverage) + tinned copper braid shield (65% coverage), PVC jacket.
Specifications
Specifications
Belden - 9944 - Specifications
| Element | Conductor(s) |
|---|---|
| No. of Elements | 8 |
| Size | 22 AWG |
| Stranding | 7x30 |
| UL Temperature | 60°C (UL CMG);80°C (UL AWM 2464) |
| Stationary Min. | 3.2 in (81 mm) |
| Installation Min. | 3.2 in (81 mm) |
| Max. Pull Tension | 95 lbs (43 kg) |
| Bulk Cable Weight | 48 lbs/1000ft |
| Environmental Suitability | Indoor (Not Riser or Plenum), Indoor |
| Sustainability | CA Prop 65 |
| Flammability / Reaction to Fire | UL 1685 FT4 Loading, FT4, IEC 60332-1-2 |
| CPR Compliance | CPR Euroclass: Eca |
| NEC / UL Compliance | Article 800, CMG |
| AWM Compliance | AWM 2464 |
| CEC / C(UL) Compliance | CMG |
| European Directive Compliance | EU CE Mark |
| UK Regulation Compliance | UKCA Mark |
