Brand: Belden
|
SKU:
B9946-DY0
Belden 9946 0601000 | Computer EIA RS-232 Cable, #22-10c, SR-PVC, O/A Foil+Braid, PVC Jacket, CMG
Regular price
$8.18
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Belden 9946 0601000 | Computer EIA RS-232 Cable, #22-10c, SR-PVC, O...
Regular price
$8.18
Unit price
Description
Description

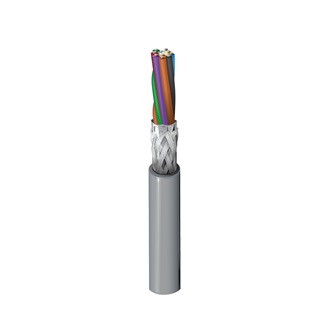

Belden 9946 0601000 | Computer EIA RS-232 Cable, #22-10c, SR-PVC, O/A Foil+Braid, PVC Jacket, CMG
Computer EIA RS-232 Cable, 22 AWG stranded (7x30) tinned copper conductors, semi-rigid PVC insulation, overall Beldfoil® (100% coverage) + tinned copper braid shield (65% coverage), PVC jacket.
Specifications
Specifications
Belden - 9946 0601000 - Specifications
| Element | Conductor(s) |
|---|---|
| No. of Elements | 10 |
| Stranding | 7x30 |
| UL Temperature | 60°C (UL CMG);80°C (UL AWM 2464) |
| Stationary Min. | 3.6 in (91 mm) |
| Installation Min. | 3.6 in (91 mm) |
| Max. Pull Tension | 113 lbs (51.3 kg) |
| Bulk Cable Weight | 59 lbs/1000ft |
| Environmental Suitability | Indoor (Not Riser or Plenum), Indoor |
| Sustainability | CA Prop 65 |
| Flammability / Reaction to Fire | UL 1685 FT4 Loading, FT4, IEC 60332-1-2 |
| CPR Compliance | CPR Euroclass: Eca |
| NEC / UL Compliance | Article 800, CMG |
| AWM Compliance | AWM 2464 |
| CEC / C(UL) Compliance | CMG |
| European Directive Compliance | EU CE Mark |
| UK Regulation Compliance | UKCA Mark |
| Conductor Count | 10 Conductors |
| Conductor Material | Tinned Copper |
| Conductor Size | 22 Awg (American Wire Gauge) |
| Conductor Type | Stranded Conductor |
| Fire Rating | General Purpose |
| Insulation Material | SrPVC-Semi-Rigid Polyvinyl Chloride |
| Jacket Material | PVC-Polyvinyl Chloride |
| Nec Rating | Nec Cmg |
| Screen/Shield Type | Braid Over Foil Shield |
| Screen/Shield | Yes |
| Shield Construction | Overall Foil &Amp Braid |
| UNSPC Code | 26121613 |
