Brand: Belden
|
SKU:
B9968-DY0

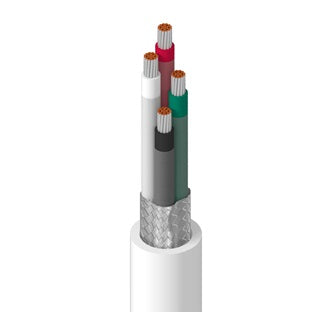

Belden 9968 0091000 | Electronic Cable, 4 Conductor #22 Stranded TC, PVC-NYL Insulation, OA TC Braid, PVC Jacket
Regular price
$8.02
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Belden 9968 0091000 | Electronic Cable, 4 Conductor #22 Stranded TC...
Regular price
$8.02
Unit price
Description
Description
Belden 9968 0091000 | Electronic Cable, 4 Conductor #22 Stranded TC, PVC-NYL Insulation, OA TC Braid, PVC Jacket
Electronic, 4 Conductor 22AWG (19x34) Tinned Copper, PVC-NYL Insulation, Overall Tinned Copper Braid(90%) Shield, PVC Outer Jacket.
Specifications
Specifications
Belden - 9968 0091000 - Specifications
| Element | Conductor(s) |
|---|---|
| No. of Elements | 4 |
| Stranding | 19x34 |
| UL Temperature | 105°C |
| Stationary Min. | 2 in (51 mm) |
| Installation Min. | 2 in |
| Max. Pull Tension | 38 lbs (17 kg) |
| Bulk Cable Weight | 29 lbs/1000ft |
| Flammability / Reaction to Fire | IEC 60332-1-2 |
| CPR Compliance | CPR Euroclass: Eca |
| Military Compliance | MIL-W-16878E/17 (insulated conductor) |
| European Directive Compliance | EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| UK Regulation Compliance | UKCA Mark |
| APAC Compliance | China RoHS II (GB/T 26572-2011) |
| Conductor Count | 4 Conductors |
| Conductor Material | Tinned Copper |
| Conductor Size | 22 Awg (American Wire Gauge) |
| Conductor Type | Stranded Conductor |
| Fire Rating | General Purpose |
| Insulation Material | PVC-Polyvinyl Chloride |
| Jacket Material | PVC-Polyvinyl Chloride |
| Screen/Shield Type | Braid Shielded |
| Screen/Shield | Yes |
| Shield Construction | Overall Shield &Amp Drain |
| UNSPC Code | 26121613 |
