Belden 9983 0091000 | Lead Wire, #22 Stranded TC, PVC Insulation, A...
Regular price
$1.46
Unit price
Brand: Belden
|
SKU:
B9983-9-DY7
Regular price
$1.46
Unit price
Description
Description

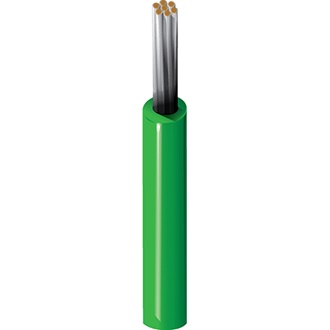

Belden 9983 0091000 | Lead Wire, #22 Stranded TC, PVC Insulation, AWM 1061
Low Temp Plastic Lead Wire, 22AWG (7x30) Tinned Copper, PVC Insulation, AWM 1061 CSA AWM 300V 80C.
Specifications
Specifications
Belden - 9983 0091000 - Specifications
| Element | Conductor(s) |
|---|---|
| No. of Elements | 1 |
| Size | 22 AWG |
| Stranding | 7x30 |
| UL Temperature | 105°C |
| Environmental Suitability | Indoor |
| Sustainability | CA Prop 65 |
| Flammability / Reaction to Fire | VW-1 |
| AWM Compliance | AWM 1061, AWM I A/B |
| CEC / C(UL) Compliance | LL7874 |
| Military Compliance | Mil-W-16878/4 |
| European Directive Compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| Conductor Material | Tinned Copper |
| Conductor Size | 22 Awg (American Wire Gauge) |
| Conductor Stranding | 7 Strands In Each Conductor |
| Insulation Color | White |
| Insulation Material | SrPVC-Semi-Rigid Polyvinyl Chloride |
| Product Type | Ul Styles 1000-1999 |
| Rohs Compliant | Yes |
| Shielded | Not Shielded |
| Temperature Rating | 80 Degrees Centigrade (176 F) |
| Ul Style | Ul Type Awm, Style 1061 |
| UNSPC Code | 26121539 |
