Belden 9987 0091000 | Lead Wire, #30 Stranded TC, PVC Insulation, A...
Regular price
$1.46
Unit price
Brand: Belden
|
SKU:
B9987-9-DY1
Regular price
$1.46
Unit price
Description
Description

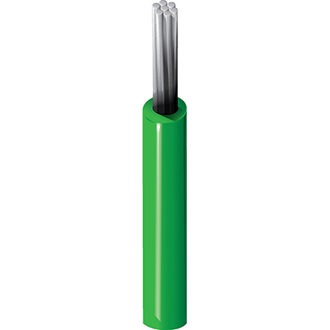

Belden 9987 0091000 | Lead Wire, #30 Stranded TC, PVC Insulation, AWM 1061
Low Temp Plastic Lead Wire, 30AWG (7x38) Tinned Copper, PVC Insulation, AWM 1061 CSA AWM 300V 80C.
Specifications
Specifications
Belden - 9987 0091000 - Specifications
| Stranding | 7x38 |
|---|---|
| Material | TC - Tinned Copper |
| No. of Conductors | 1 |
| Non-UL Temp Rating | 80°C |
| UL Temp Rating | 80°C |
| Conductor Material | Tinned Copper |
| Conductor Size | 30 Awg (American Wire Gauge) |
| Conductor Stranding | 7 Strands In Each Conductor |
| Insulation Color | White |
| Insulation Material | SrPVC-Semi-Rigid Polyvinyl Chloride |
| Product Type | Ul Styles 1000-1999 |
| Rohs Compliant | Yes |
| Shielded | Not Shielded |
| Temperature Rating | 80 Degrees Centigrade (176 F) |
| Ul Style | Ul Type Awm, Style 1061 |
| UNSPC Code | 26121539 |
