Belden 9L28064 008H100 | Flat Cable, Belden’S .050" Pitch Gray...
Regular price
$11.30
Unit price
Brand: Belden
|
SKU:
B9L28064-100
Regular price
$11.30
Unit price
Description
Description

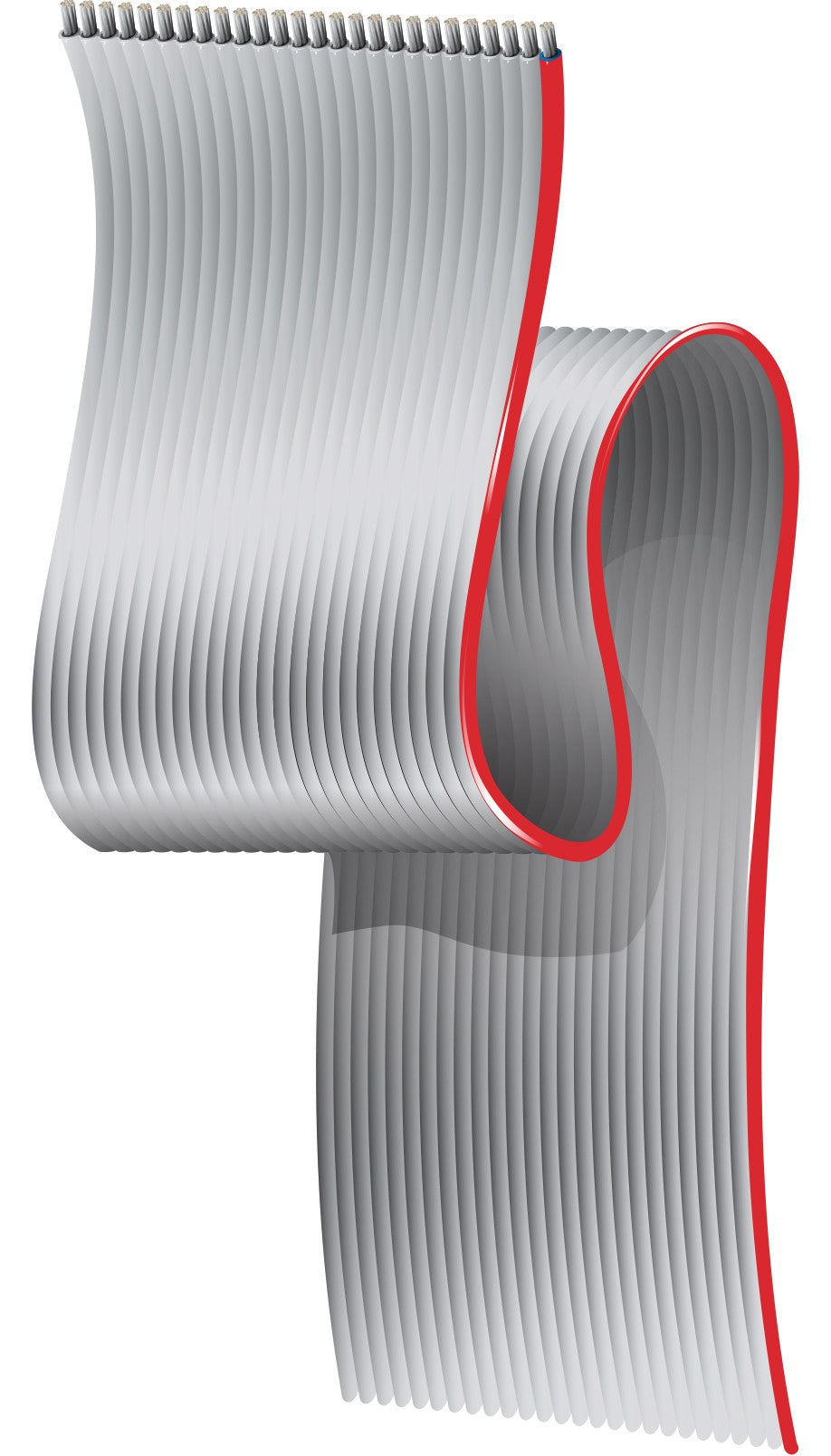

Belden 9L28064 008H100 | Flat Cable, Belden’S .050" Pitch Gray Ribbon Cable
Belden’s .050" pitch gray ribbon cable was designed for general purpose electronic interconnect applications. The cable provides reliable mass-termination to standard IDC connectors.
Specifications
Specifications
Belden - 9L28064 008H100 - Applications
- Internal Interconnection
- Internal Wiring Of Electronic Equipment
- Reliable Mass-Termination To Standard Idc Connectors
Belden - 9L28064 008H100 - Specifications
| Conductor Count | 64 Conductors |
|---|---|
| Conductor Size | 28 Gauge Awg |
| Jacketed | Cable Has No Jacket |
| Construction | Standard Flat, Ie Gray Etc |
| FLAT/RIBBON CABLES (Y/N) | Yes, This Is Flat Cable |
| Screen/Shield | No,Cable Has No Shield |
| Pitch (C-C Spacing) | .050 Inch Center To Center |
| UNSPSC Code | 26121624 |
| No. of Elements | 64 |
| Size | 28 AWG |
| Stranding | 7x36 |
| UL Temperature | 105°C |
| Operating Temperature | -40°C to +105°C |
| Installation Min. | 3.0 in (76 mm) |
| Bulk Cable Weight | 74 lbs/1000ft |
| Environmental Suitability | Indoor |
| Flammability / Reaction to Fire | VW-1 |
| Color | Gray |
| Length | 100 ft |
| UPC | 612825221715 |
