Brand: Belden
|
SKU:
B8451

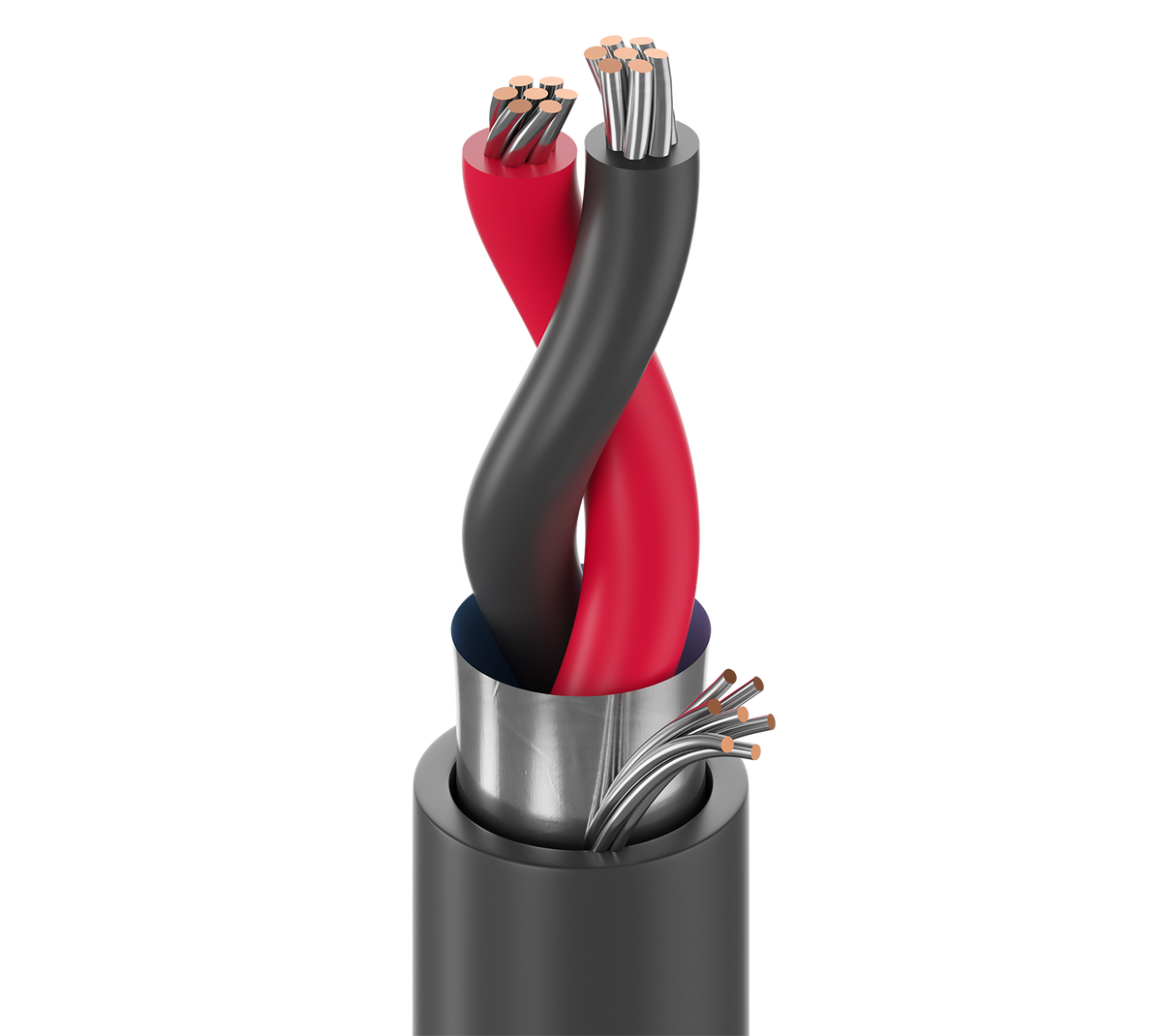

Belden BAV 8451 0105000 | Multi-Conductor - Twisted-Pair Cable 2 22 Awg Pp Shield Pvc Fr Black
Regular price
$520.20
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Belden BAV 8451 0105000 | Multi-Conductor - Twisted-Pair Cable 2 22...
Regular price
$520.20
Unit price
Description
Description
Belden BAV 8451 0105000 | Multi-Conductor - Twisted-Pair Cable 2 22 Awg Pp Shield Pvc Fr Black
22 AWG stranded (7x30) TC conductors, polypropylene insulation, paper wrap, twisted pair, overall Beldfoil shield (100% coverage), 22 AWG stranded TC drain wire, PVC jacket.
Specifications
Specifications
Belden BAV - 8451 0105000 - Overview
- For use with automatic stripping equipments; low voltage analog signals (4-20ma, 0-10v, ...); low voltage digital control (24v, …); line level audio; computer communication; panel wiring
Belden BAV - 8451 0105000 - Specifications
| Conductor Count | 1 Pair |
|---|---|
| Conductor Material | Tinned Copper |
| Conductor Size | 22 Awg (American Wire Gauge) |
| Conductor Type | Stranded Conductor |
| Fire Rating | General Purpose |
| Insulation Material | Pp-Polypropylene |
| Jacket Material | Pvc-Polyvinyl Chloride |
| Nec Rating | Ul Listed Art 800 Riser |
| Screen/Shield Type | Foil Shielded - Alum/Mylar |
| Screen/Shield | Yes |
| Shield Construction | Overall Shield & Drain |
| UNSPSC Code | 26121524 |
| Environmental Suitability | Indoor - Riser, Indoor |
