Brand: Belden | SKU: BC602100001

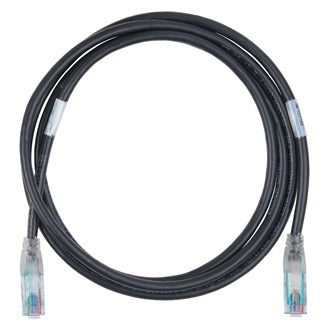

Belden C602100001 | CAT6+ UTP CMP Patch Cords

$14.22

Description

Total Number of Pairs	4
Overall Nominal Diameter	0.238 in
Wiring Scheme	T568A/B-T568A/B
Packaging	Individually packaged in a clear plastic bag.
Boot	Elastomer
Conductor	BC - Bare Copper
Front Connection	Blades Phosphor Bronze with 50u inch Gold over Nickel Plating
Inner Jacket	PVC - Polyvinyl Chloride
Insulation	PO - Polyolefin
Outer Jacket	PVC - Polyvinyl Chloride
Color	Translucent
Dielectric Strength	1,000 V RMS @ 60 Hz for 1 minute
Current Rating	1.500 A
Insulation Resistance	500 M-Ohm Minimum
Max Contact Resistance	20 mOhm
Installation Temperature Range	-10°C To +60°C
Storage Temperature Range	-40°C To +70°C
Operating Temperature Range	-20°C To +75°C
Min Bend Radius (Overall Cable)	1.040 in
Plug /Jack Compatibility	RJ45
UL Rating	Plenum
