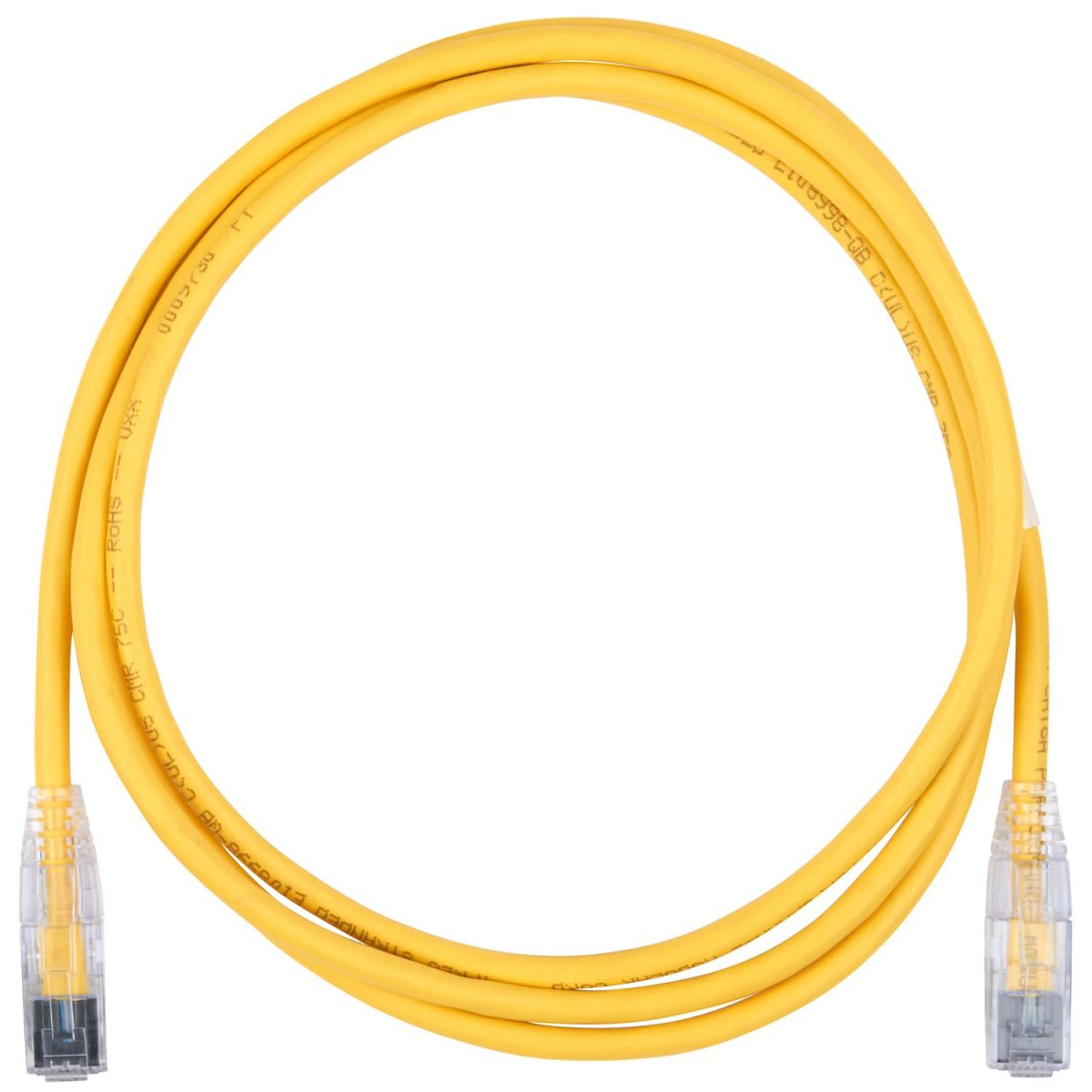

Belden CAD1104005 | Patch Cord, PVC, Yellow, Cat 6A, 5 Ft. L, Non-Shielded, RJ-45

Specifications

• Suitable Applications: TIA Category 6A, ISO Class EA, 10GBASE-T, Support Power over Ethernet (up to 100W), Cisco UPOE (up to 60W) and Power over HDBase-T (up to 100W)
• Insulation Material: High Density Polyethilene
• Inner Jacket Material: PVC - Polyvinyl Chloride
• Overall Nominal Diameter: 4.724 mm
• Boot Color: Translucent
• Wiring Scheme: T568A/B-T568A/B
• Plug / Jack Compatibility: RJ-45
• Storage Temperature Range: -40 °C To +70 °C
• Installation Temperature Range: -10 °C To +60 °C
• Operating Temperature Range: -20 °C To +75 °C
• Max. Recommended Pull Tension: 50.042 N
• Min. Bend Radius (Overall Cable): 18.898 mm
• Suitability - Indoor: Yes
• Dielectric Strength: 1, 000 V RMS @ 60 Hz for 1 minute
• Current Rating: 1.500 A
• Insulation Resistance: 500 M-Ohm Minimum
• Max. Contact Resistance: 20 m-Ohm

Standards

• Rating: Riser
• Other Standards: FCC Part 68, Subpart F, IEC 60603-7
• EU Directive 2002/95/EC (RoHS): Yes
• MII Order #39 (China RoHS): EUP 50
• Telecommunications Standards: ISO/IEC 11801:2002 Amendment 2, TIA 568.2-D
• Safety Listing: c(UL)us Listed
• Other Specification: CEC/C(UL) Voltage Rating: 300 V RMS
