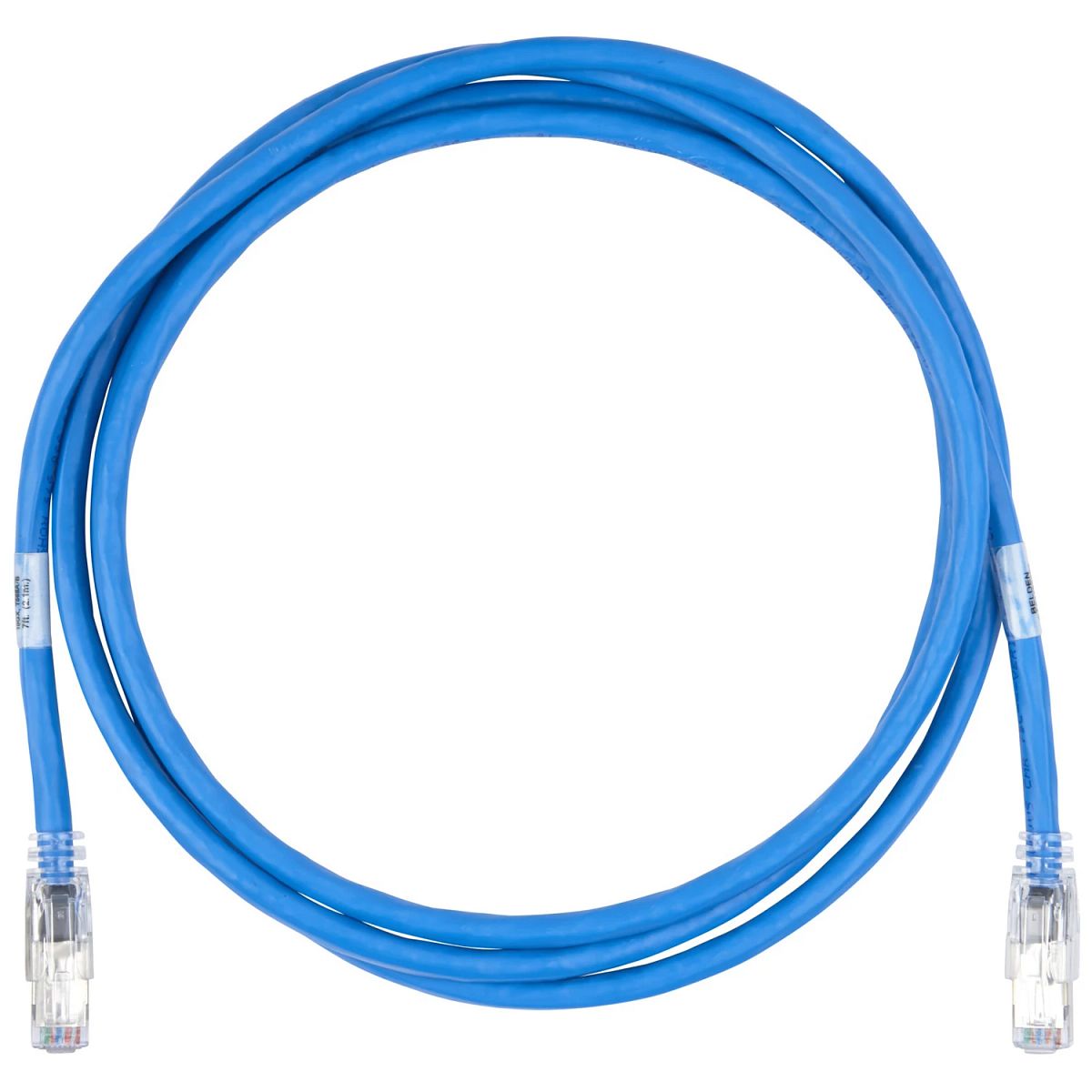

Belden CAF1106015 | Copper Patch Cord, PVC, Blue, Cat 6A, Shielded, 24 AWG, RJ-45 to RJ-45, 15 Ft. L

Specifications

• Suitable Applications: IBDN Shielded System 10GX, TIA Category 6A, ISO Class EA, 10GBASE-T
• Number of Conductors: 8
• Conductor Material: BC - Bare Copper
• Insulation Material: PO - Polyolefin
• Outer Jacket Material: PVC - Polyvinyl Chloride
• Overall Nominal Diameter: 0.275 in.
• Plug RJ-45 Material: Polycarbonate
• Boot Material: Lexan
• Front Connection Blade Material: Phosphor Bronze with 50u inch Gold over Nickel Plating
• Boot Color: Translucent
• Plug / Jack Compatibility: RJ-45
• Termination: RJ-45
• Connection: Mated Connection
• Durabilities: 750 Cycles
• Storage Temperature Range: -40 °C to +75 °C
• Installation Temperature Range: -10 °C to +60 °C
• Operating Temperature Range: -10 °C to +60 °C
• Max. Recommended Pull Tension: 11.250 lb.
• Min. Bend Radius (Overall Cable): 2.200 in.
• Suitability: Indoor
• Current Rating: 1.500 A
• Insulation Resistance: 500 M-Ohm Minimum
• Max. Contact Resistance: 20 m-Ohm

Standards & Environmental Programs

• UL Rating: Riser
• Other Standards: FCC Part 68, Subpart F, IEC 60603-7
• EU Directive 2002/95/EC (RoHS): Yes
• Telecommunications Standards: Category 6A - TIA 568.C.2, Class EA - ISO/IEC 11801:2002 Amendment 2
• Safety Listing: Bi-national Standard Listed

Additional Specifications

• Belden ENT CAF1106015 Data Sheet
