Brand: Belden
|
SKU:
DB6BNCU

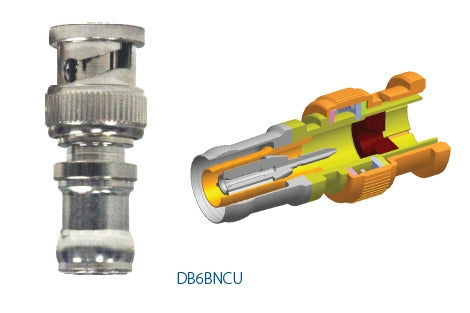

Belden DB6BNCU-25 | Connector, BNC, Male Plug, Universal, RG6, 75 Ohm, Brass, PC
Regular price
$5.11
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Belden DB6BNCU-25 | Connector, BNC, Male Plug, Universal, RG6, 75 O...
Regular price
$5.11
Unit price
Description
Description
Belden DB6BNCU-25 | Connector, BNC, Male Plug, Universal, RG6, 75 Ohm, Brass, PC
Connector; BNC; Male Plug, Universal; 0.265 to 0.305 in. Insulation Outside Diameter; RG6; 75 Ohm; 1GHz, 2GHz, 3GHz; Brass; Brass Contact; 30 dB (1GHz), 25 dB (2GHz), 24 dB (3GHz); Compression; PC
Specifications
Specifications
Belden - DB6BNCU-25 - Product Categories
- Network Cabling Infrastructure
- Coaxial Cabling Infrastructure
- Coaxial Hardware
- Coaxial Connectors
Belden - DB6BNCU-25 - Applications
- CCTV, Security Cameras, Video
Belden - DB6BNCU-25 - Specifications
| Manufacturer Name | Belden |
|---|---|
| Manufacturer Part Number | DB6BNCU-25 |
| Item Description | Connector, BNC, Male Plug, Universal, RG6, 75 Ohm, Brass, PC |
| Body Finish | Pc |
| Cable Insulation O.D. | 0.265 To 0.305 In. |
| Cable Size | Rg-6 |
| Coax Type | Rg-6 |
| Configuration | Bnc |
| Connector Type | Bnc (Male) |
| Contact Material | Brass |
| Contact Plating | Gold Plated |
| Finish | Nickel-Plated |
| For Use With | Cplcrbc-Br Compression Tool, Ps59/6/Rgb Strip Tool |
| Frequency Band | 1 To 3Ghz |
| Frequency Rating | 1Ghz, 2Ghz, 3Ghz |
| Impedance | 75 Ohm |
| Installation | Compression |
| Material | Brass |
| Package Quantity | 25 |
| Product Type | 1-Piece Straight Coaxial Connector |
| Return Loss | 30 Db (1Ghz), 25 Db (2Ghz), 24 Db (3Ghz) |
| Rohs Compliant | Yes |
| Suitable For Use With | Tri-Shield And Quad-Shield Coaxial Cables |
| Termination | Compression |
| Type | Bnc 75 Ohm |
