Brand: Belden
|
SKU:
BDEIP164U
Belden DEIP164U | Indoor Digital Electricity Cable, 8 Conductors, Tinned Copper, 19 Strands, PVC, 450V, 16AWG
Regular price
$2,352.29
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Belden DEIP164U | Indoor Digital Electricity Cable, 8 Conductors, T...
Regular price
$2,352.29
Unit price
Description
Description

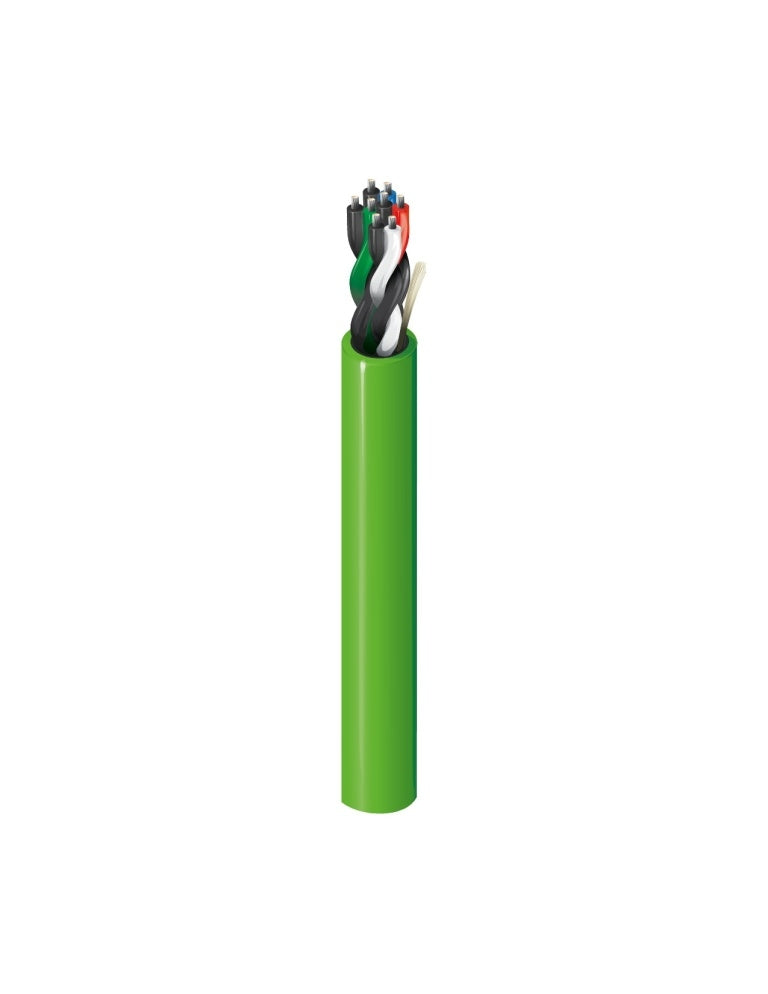

Belden DEIP164U | Indoor Digital Electricity Cable, 8 Conductors, Tinned Copper, 19 Strands, PVC, 450V, 16AWG
Indoor Digital Electricity Copper Cable, 4-16 AWG Stranded (19x29) Tinned Copper Pairs with Flamarrest insulation, Plenum-CL4P, CMP, Flamarrest Jacket with Ripcord
Specifications
Specifications
Belden - DEIP164U - Product Categories
- Electronic Wire and Cable
- Other Electronic Wire and Cable
Belden - DEIP164U - Applications
- Digital Electricity™, Fault Managed Power Systems (FMPS), remote powering, indoor
Belden - DEIP164U - Specifications
| Manufacturer Name | Belden |
|---|---|
| Manufacturer Part Number | DEIP164U |
| Item Description | Indoor Digital Electricity Cable, 8 Conductors, Tinned Copper, 19 Strands, PVC, 450V, 16AWG |
| Amperage | 7.5 A |
| Bend Radius | 3.88 In. |
| Csa | Ft6 Horizontal Flame &Amp Smoke Test |
| Capacitance | 30 Pf/Ft. |
| Color Code | Green |
| Cond. Type | Stranded Conductor |
| Conductor Count | 8 Conductor |
| Conductor Gauge (Awg) | 16 Awg |
| Conductor Material | Tinned Copper |
| Conductor Size | 16 Awg |
| Conductor Stranding | 19 Strands |
| Conductor Type | Stranded |
| Current Rating | 7.5 A |
| Insulation Color | Black And Red, Black And White, Black And Green, Black And Blue |
| Insulation Material | Pvc |
| Insulation Thickness | 0.011 In. |
| Jacket Color | Apple Green |
| Jacket Material | Pvc |
| Jacket Thickness | 0.017 In. |
| Jacketing Material | Lspvc-Low Smoke Polyvinyl Chloride |
| Length | 2000 Ft. |
| Material | Tinned Copper |
| Nec Rating | Ul Listed Art 800 Plenum |
| Number Of Conductors | 4 Pair |
| Outside Diameter | 0.386 In. |
| Plenum | Plenum |
| Product Type | Indoor Digital Electricity Cable |
| Pulling Force | 243 Lb. |
| Resistance | 4.3 Ohm/1000 Ft. Dc |
| Rohs Compliant | Yes |
| Screen/Shield | No |
| Special Rating | Cl4P, Cmp |
| Strands | 19X29 Str |
| Temperature Rating | 0 To 75 Degrees Celsius |
| Voltage | 450 V |
| Environmental Suitability | Indoor |
