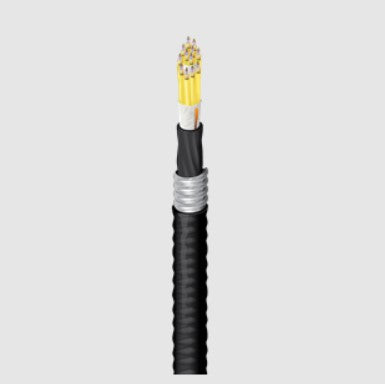

Belden FDSD144AK | Indoor/Outdoor Plenum OS2 Distribution 144Fibers Aluminum Interlocked
Regular price
$19.68
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Belden FDSD144AK | Indoor/Outdoor Plenum OS2 Distribution 144Fibers...
Regular price
$19.68
Unit price
Brand: Belden
|
SKU:
FOSMA-144F9-VG
Regular price
$19.68
Unit price
Shipping calculated at checkout.
Description
Description
Belden FDSD144AK | Indoor/Outdoor Plenum OS2 Distribution 144Fibers Aluminum Interlocked
Specifications
Specifications
Belden - FDSD144AK - Specifications
| Product Category | Fiber Distribution Cable |
|---|---|
| Suitable Applications | Premise Backbone |
| Fiber Type | OS2 |
| Fiber Core Diameter | 8.2/125 µm |
| Buffer Material | PVC - Polyvinyl Chloride |
| Fiber Count | 144 |
| Buffer Diameter | 900 µm |
| Fiber Color Coding | TIA-598-D |
| Number of Active Subunits | 12 |
| Fibers Per Subunit | 12 |
| Subunit Diameter | 0.220 in (5.6 mm) |
| Subunit Color | Yellow |
| Subunit Strength Members | Waterblocking aramid yarns |
| Central Strength Member | GRP |
| Core Wrap | Waterblocking and nomex tape |
| Cable Core Waterblocking | Waterblock Tape |
| Material | PVC - Polyvinyl Chloride |
| Nom. Diameter | 1.065 in (27.1 mm) |
| Color | Black |
| Number of Ripcords | 1 |
| Armor Type and Material | AIA - Aluminum Interlock Armor |
| Jacket Material | PVC - Polyvinyl Chloride |
| Nom. Diameter | 1.460 in (37.1 mm) |
| Color | Black |
| Min. Bend Radius During Installation | 20x Cable OD |
| Min. Bend Radius During Operation | 10x Cable OD |
| Max. Tensile Strength During Installation | 2670 N (600 lbf) |
| Max. Tensile Strength During Operation | 800 N (180 lbf) |
| Crush Resistance | 440 N/cm |
| Bulk Cable Weight | 752 lbs/kft (1119 kg/km) |
| Installation Temperature Range | 0°C to +60°C |
| Operating Temperature Range | -40°C to +70°C |
| Storage Temperature Range | -40°C to +70°C |
| Environmental Suitability | Indoor/Outdoor, Sunlight Resistance, Burial |
