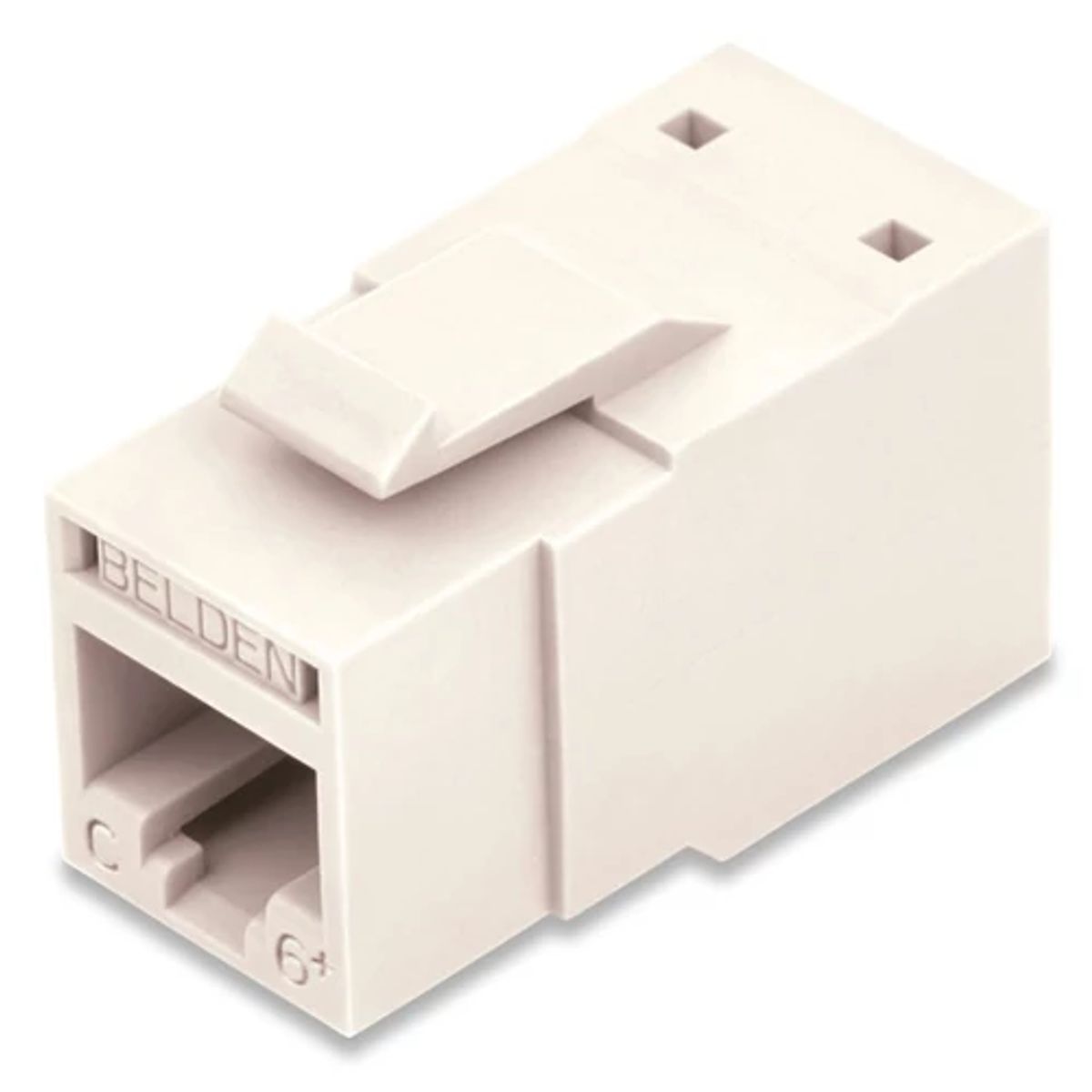

Belden RV6MJKURD-B24 | REVConnect, Modular Jack, Copper Alloy/PBT Glass Reinforced, Gold Plated, Cat 6+, Red, 0.94 H x 0.64 W x 1.33 D in.

Standards

• UL Rating: UL94V-0
• Data Category: Category 6+
• Telecommunications Standards: Category 6 - TIA 568.2-D, ISO/IEC 11801-1, TIA TSB-5021
• IEEE Specification: Power Over Ethernet (PoE) IEEE 802.3at type 1 and 2 (up to 30W), IEEE802.3bt/D1.7 type 3 and 4 (up to 100W), CISCO UPOE (up to 60W), Power over HDBaseTTM (up to 100W)
• Other Specification: UL 1863, IEC 60603-7, ANSI/TIA 1096-A (formely FCC Part 68-F)

Applicable Environmental and Other Programs

• Environmental Space: Indoor
• EU Directive 2002/95/EC (RoHS): Yes
• EU RoHS Compliance Date (yyyy-mm-dd): 2006-07-01
• MII Order #39 (China RoHS): EUP 50

Flammability, LS0H, Toxicity Testing

• UL Flammability: UL2043 Air Handling Spaces
• Safety Listing: c(UL)us Listed
