Brand: Belden
|
SKU:
1024612

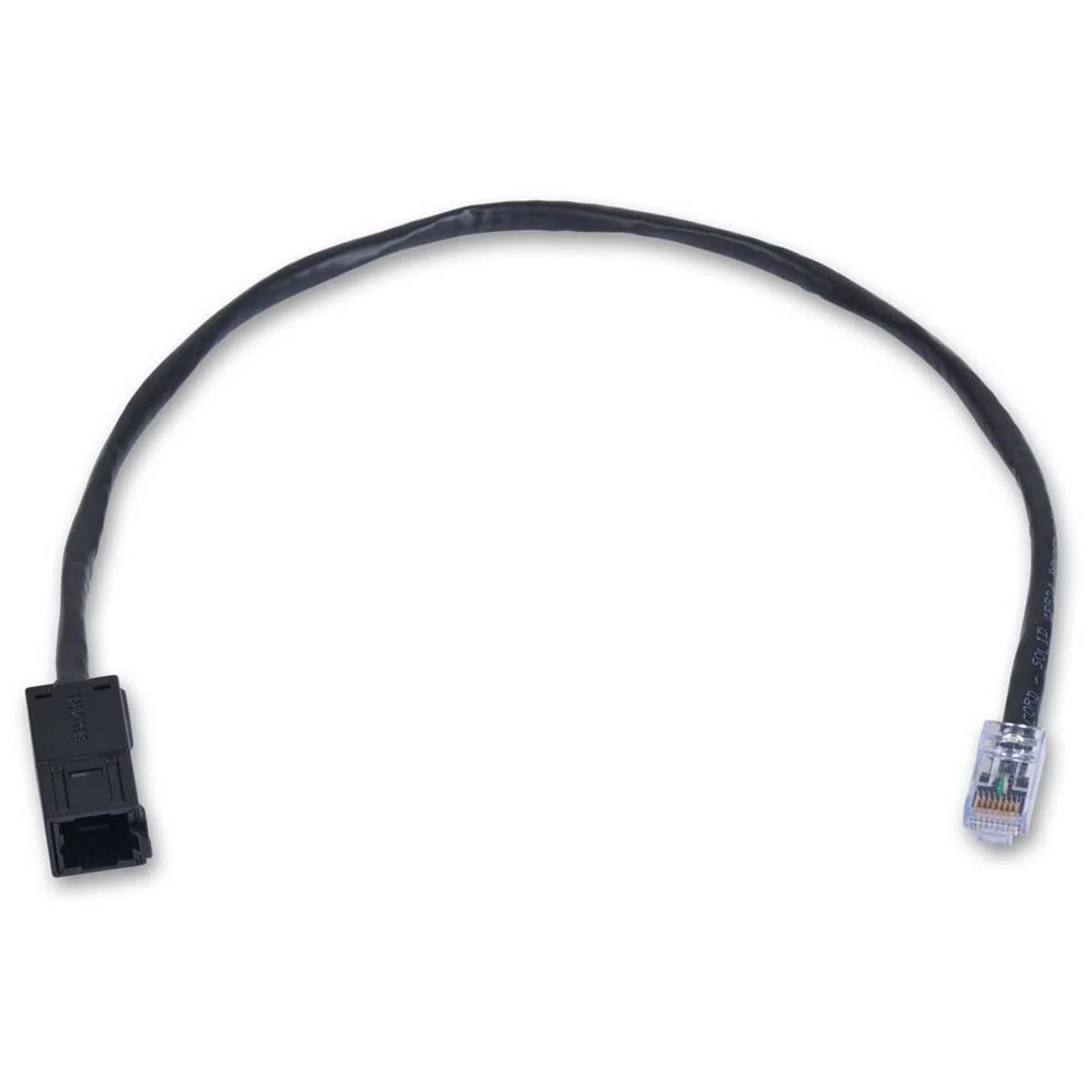

Belden RVAFFPUBK18-S1 | Flex Plug, Black, Cat 6A, Solid Conductor, 23 AWG, RJ-45/REV Connect Connector
Regular price
$27.06
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Belden RVAFFPUBK18-S1 | Flex Plug, Black, Cat 6A, Solid Conductor, ...
Regular price
$27.06
Unit price
Description
Description
REVConnect 10GX flexplug, CAT 6A, Bonded-Pair, 4 Pair, 23 AWG solid.
Specifications
Specifications
Specifications
- Conductor material: bare copper
- Insulation material: polyolefin
- Outer jacket material: PVC
- Overall nominal diameter: 0.23 in.
- Wiring scheme: T568A/B-T568A/B
- Dielectric strength: 1000V RMS @ 60 Hz
- Current rating: 1.500 A
- Insulation resistance: 500 M-Ohm Minimum
- Max contact resistance: 20 mOhm
- Installation temp range: -10 °C To +60 °C
- Storage temp range: -40 °C To +70 °C
- Operating temp range: -10 °C To +60 °C
- Min bend radius (overall cable): 1.040 in.
- Plug /jack compatibility: RJ-45, REVConnect core
- UL rating: UL94 V-0, UL1863, UL2043
- Data category: category 6A
- Telecommunications standards: category 6A - TIA 568.2-D, ISO/IEC 11801:2002 Ed.2
- Other standards: FCC part 68, subpart F, IEC 60603-7
- Indoor suitability
- Safety listing: c(UL)us listed
Additional Specifications
| Mounting Type | Wall Mount |
|---|---|
| Wire Type | Solid |
| Category | Cat 6A |
| Connector Type | RJ-45 |
