Brand: Belden | SKU: 910953

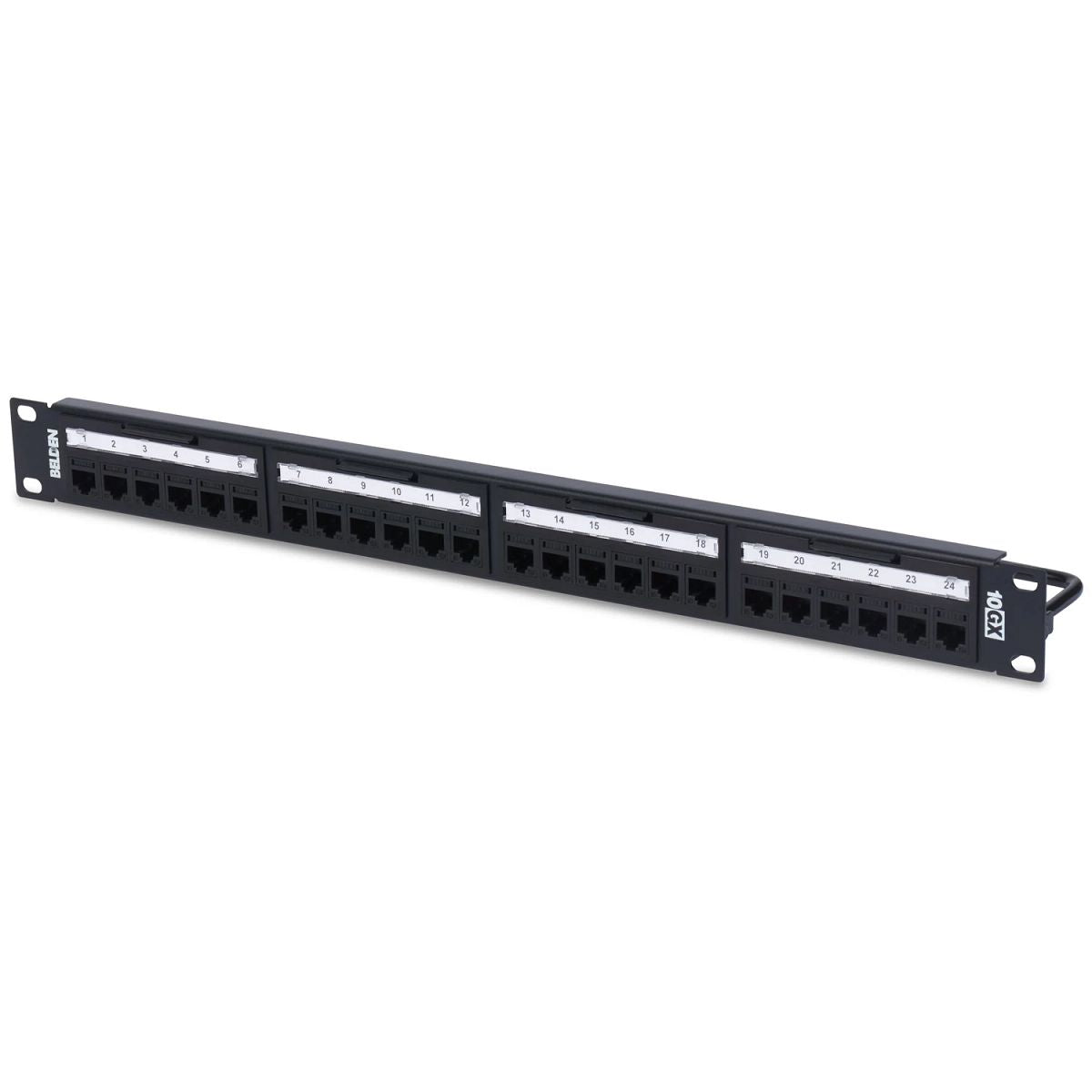

Belden RVAPPF1U24BK | REV Connect Patch Panel, Steel, Black, 24-Port, Cat 6A, 1U, Preloaded, Wall Mount

$578.38

Shipping calculated at checkout.

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

The only patch panel that allows installers to utilize a multi-pair termination tool while terminating with one hand. To support faster deployment in enterprise networks, REVConnect Patch Panels are based on innovative REVConnect termination technology.

Key Features

Simplifies project logistics with one termination method for patch panels and workstations
Easy project planning and material ordering with one part number
Efficient assembly in live equipment cabinets and wall-mount racks
No extra accessories needed for tidy cable management
Labeling material complies with ANSI/TIA-606
Preloaded Panels are fully assembled with 24 or 48 jack housings and REVConnect cores
Single-port modularity using standard REVConnect jacks
The pre-printed ID card and labeling window for port identification
Label sheets can be printed using LabelFlex software (optional)

Specifications

Dimensions

Height: 1.73 in.
Width: 19 in.
Depth: 2 in.

Electrical Characteristics

Dielectric strength: 1,000 V RMS @ 60 Hz for 1 minute (signals to ground)
Current rating: 1.300 A
Insulation resistance: 500 M? minimum
Termination resistance: 2.5 m?

Temperature Range

Installation temp range: -10°C to +60°C
Storage temp range: -40°C to +70°C
Operating temp range: -10°C to +60°C

Mechanical Characteristics

Footprint/Type: KeyConnect
Tool compatibility: REVConnect termination tool (RVUTT01)
Plug /jack compatibility: RJ45

Standards

UL rating: UL94 V-0
Data category: Category 6A
Telecommunications standards: Category 6A - TIA 568.C.2, category 6A - ISO/IEC 11801:2002 Ed.2
IEEE Specification: Power over ethernet (PoE) IEEE 802.3at type 1 and 2 (up to 30W), IEEE802.3bt/D1.7 type 3 and 4 (up to 100W), CISCO UPOE (up to 60W), power over HDBaseTTM (up to 100W)
Other standards: FCC part 68, subpart F, IEC 60603-7, UL 1863

Environmental Programs

EU directive 2011/65/EU (ROHS II): Yes

Flammability

Safety Listing: c(UL)us listed

Additional Specifications

ECCN	EAR99
Country of Origin	DK - Denmark
Mounting Type	Wall Mount
Panel Color	Black
Panel Type	Loaded
Rack Units	1
Termination	Jack Modules
Wiring Configuration	T568B
Category	Cat 6A

Documents and Downloads

Belden ENT RVAPPF1U24BK Data Sheet
