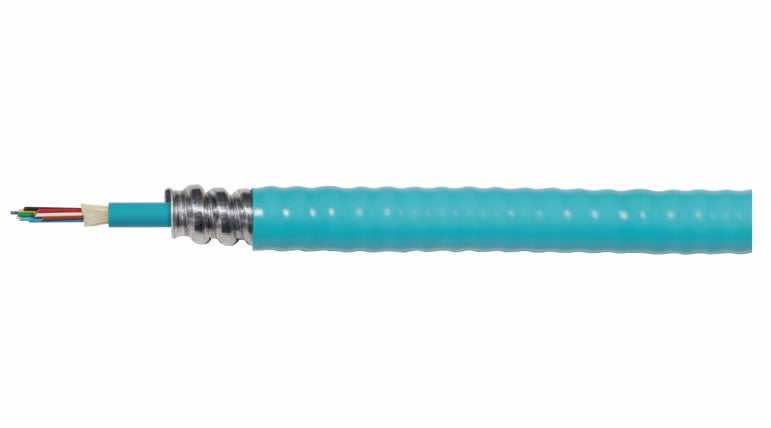

Berk-Tek PDPK012EB301025 | Premise Distribution Cable, OM3 Fiber, 900µm Tight Buffered Cable, 12 Fiber, Plenum Fire Rating
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Description
Description
Berk-Tek's ARMOR-TEK„ INTERLOCK ARMOR fiber cables feature a tight-buffered or loose tube fiber cable and aluminum or steel spirally wrapped armor, covered with a plenum or riser-rated jacket. Armor-Tek fiber cables can be used in any of the following installation environments - indoor, indoor/outdoor, in backbones, between closets and in fiber to the desk. Armor-Tek is a viable and cost-effective solution for applications where a pathway is beyond its fill ratio, for areas where extra physical protection is needed, where network security is a concern, in a fast track installation, between buildings, direct burial or in trays.
Specifications
Specifications
Berk-Tek - PDPK012EB301025 - Product Categories
- Network Cabling Infrastructure
- Fiber Optic Cabling Infrastructure
- Fiber Optic Cable
- Indoor/Outdoor Fiber Cable
Berk-Tek - PDPK012EB301025 - Specifications
| Manufacturer Name | Berk-Tek |
|---|---|
| Manufacturer Part Number | PDPK012EB301025 |
| Item Description | Premise Distribution Cable, OM3 Fiber, 900µm Tight Buffered Cable, 12 Fiber, Plenum Fire Rating |
| ARMORED | YES |
| Application | Indoor |
| Armor Type | Interlocking Aluminum |
| Armored | Yes |
| Attenuation | 0.7 dB/km, 0.7 dB/km |
| Bend Radius | 7.8 in. Installation, 5.2 in. Long Term |
| CABLE O.D. (IN.) | 0.523 |
| Cable Diameter | 13.3mm |
| Cable Type | Tight Buffered |
| Construction | Tight Buffered Plenum |
| Fiber Core Diameter | 50/125µm |
| Fiber Count | 12 |
| Fiber Type | OM3 |
| Fire Rating | Plenum |
| Jacket Color | Aqua |
| MAX. TENSILE LOAD INSTALLATION (LB.) | 300 |
| MAX. TENSILE LOAD INSTALLATION N | 1335 |
| MAX. TENSILE LOAD LONG TERM. N | 400 |
| MIN. BEND RADIUS INSTALLATION (CM) | 19.9 |
| MIN. BEND RADIUS INSTALLATION (IN.) | 7.8 |
| MIN. BEND RADIUS LONG TERM (CM) | 13.3 |
| NO. OF FIBERS | 12 |
| Operating Temperature - Maximum | 75 Degrees Celsius |
| Operating Temperature - Minimum | -20 C |
| Outside Diameter | 0.523 in. (13.3mm) |
| Product Type | Premise Distribution Cable |
| Speed | 50um |
| Temperature Rating | -25 to +75 C |
| Transmission Mode | Multi-Mode |
| Type | Indoor Fiber Cable |
| Wavelength | 850/1300nm |
