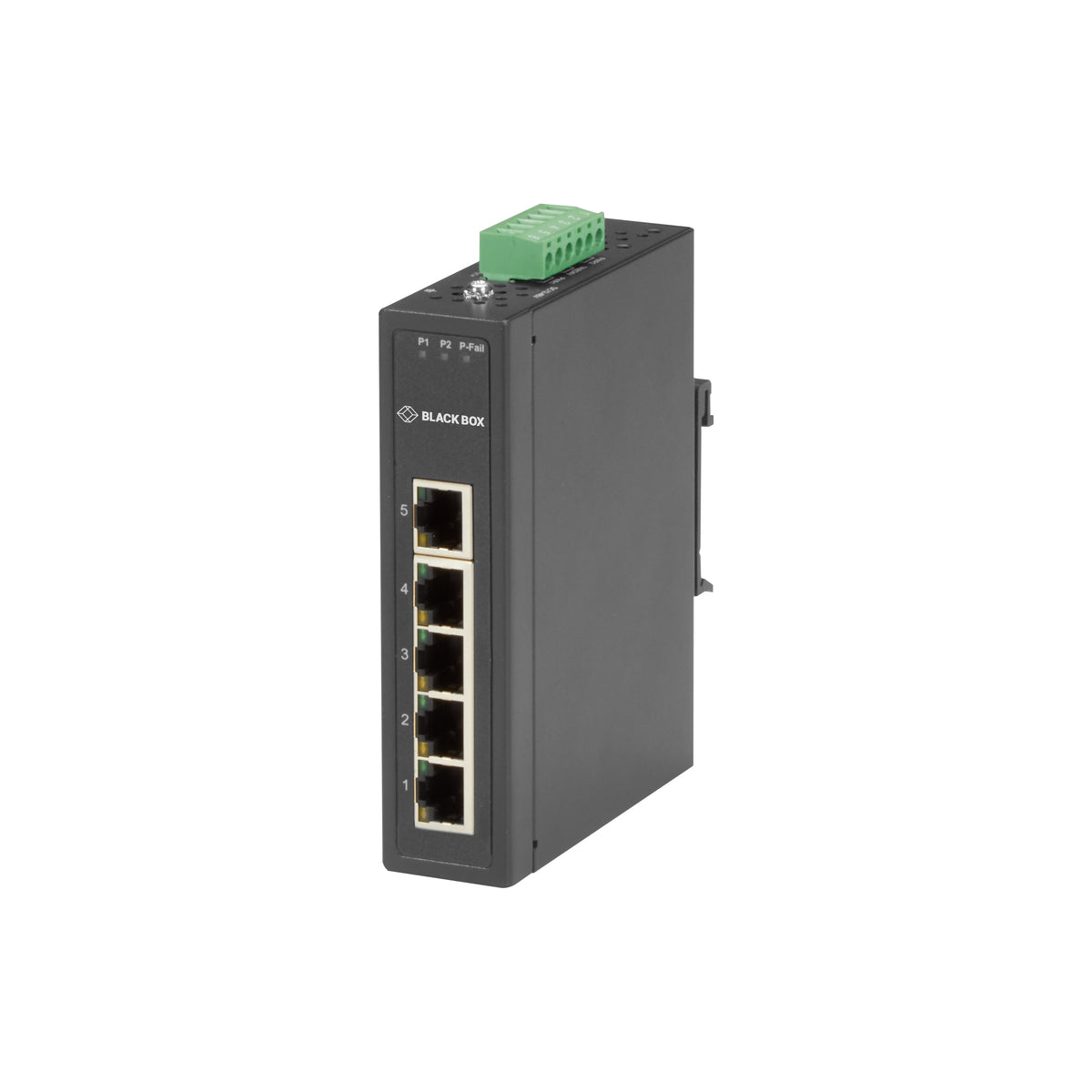

Black Box Network Services LBH3050A | LBH3000 Series Fast Ethernet ...
Description
Description
Unlike the Ethernet switches in your wiring closet or computer center, the switches at the edges of your network have to withstand extreme temperatures and conditions. This is where the Industrial 10-/100-Mbps Ethernet Switch from Black Box comes in. It's built to withstand extreme temperatures of -40 to 75°C. An IP30 metal housing protects against dust and dirt.
Ideal for use in harsh environments, the switch is ideal for: Security/surveillance to backhaul IP camera data
Compact switch for industrial environments with wide temperature ranges.
Fast Ethernet (100-Mbps) Extreme Temperature Switch - (5) 10/100-Mbps Copper RJ45, 12-48V DC-Power
Black Box Network Services - LBH3050A - Features
- Features four 10/100-Mbps switch ports and one 10/100/100-Mbps uplink port.
- Withstands extreme temperatures between -40 and +167 F (-40 to +75 C) and has an IP 30 enclosure.
- Supports redundant 12-48 VDC input power and a P-Fail relay.
- Ideal for scurity and surveillance, building automation, oil/gas facilities, military applications and factories.
- Features oadcast storm protection.
- Mounts on a DIN rail or the wall.
- Includes panel mount kit.
- Features four 10/100-Mbps switch ports and one 10/100/100-Mbps uplink port.
- Withstands extreme temperatures between -40 and +167º F (-40 to +75º C) and has an IP 30 enclosure.
- Supports redundant 12-48 VDC input power and a P-Fail relay.
- Ideal for security and surveillance, building automation, oil/gas facilities, military applications and factories.
- Features broadcast storm protection.
- Mounts on a DIN rail or the wall.
- Includes panel mount kit.
- Building automation and HVAC control
- M2M communications with remote stations in oil/gas facilities
- Communications networks for defense and military applications
- Factory automation and machine control
- Redundant power
- The switch features 12 - 48 VDC redundant power, which is secured with a double protection mechanism: Power Polarity Reverse Protect and an Overload Current Resettable Fuse. The former tolerates reverse power wiring while the later protects the switch from overload currents.
- Alarm alerts
- Each port has two LEDs to show link and collision status. The switch also has a P-Fail LED which, in the event of a power failure, will activate the alarm to notify administrators.
- Easy to set up
- The switch is literally plug-and-play. All ports are autosensing for speed and duplex, adjusting to the connected device automatically. They also feature Auto MDI/MDI-X, eliminating the need for crossover cables.
Specifications
Specifications
Black Box Network Services - LBH3050A - Product Categories
- Networking
- Networking
- Switches
Black Box Network Services - LBH3050A - Specifications
| Brand Name | Black Box Network Services |
|---|---|
| Manufacturer Part Number | LBH3050A |
| Item Description | LBH3000 Series Fast Ethernet (100-Mbps) Extreme Temperature Switch - 10/100-Mbps Copper RJ45, 12-48V DC-Power |
| Type Of Device | Standalone Switch |
| UNSPSC Code | 43222612 |
| Warranty | 1 Year Double Diamond™ Warranty (Standard) |
