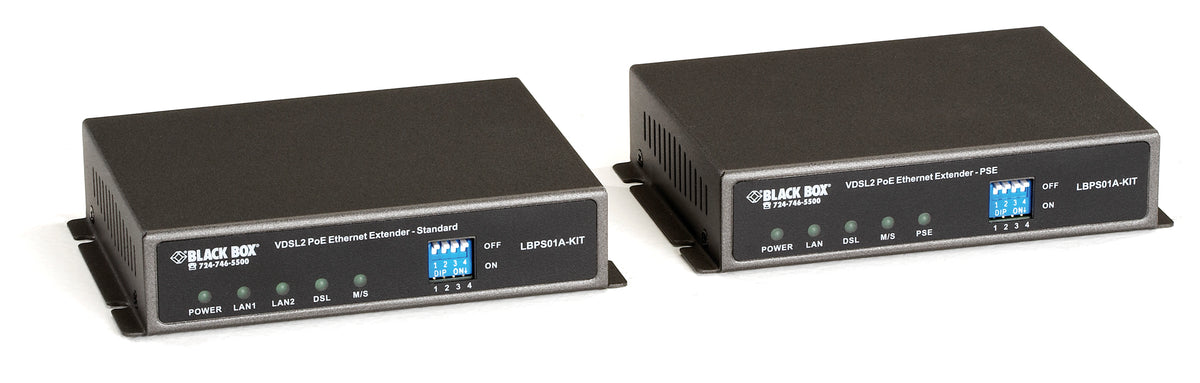

Black Box Network Services LBPS01A-KIT | PoE Ethernet Extender Kit

Black Box Network Services - LBPS01A-KIT - Features

• The VDSL2 PoE Ethernet Extender Kit features two extenders, one of which is a PoE PSE device (802.3af)
• Supports 100-Mbps downstream and 60-Mbps upstream for distances up to 500 feet (152.4 m)
• An advanced auto-rate algorithm automatically determines the best possible baud rate for each connection and sets up the extender without the need for user interface
• Supports distances of up to 4000 feet (1219 m) at 28/0.3 Mbps.
• Autosensing, autonegotiating 10-/100-Mbps Ethernet port.
• Auto MDI/MDI-X meansyou never need a crossover cable on the Ethernet side.
• DIP switches for master/slave configuration.
• Low latency for video and voice applications
• The VDSL2 PoE Ethernet Extender Kit features two extenders, one of which is a PoE PSE device (802.3af).
• Supports 100-Mbps downstream and 60-Mbps upstream for distances up to 500 feet (152.4 m).
• Auto-rate algorithm automatically determines the best possible baud rate.
• Supports distances of up to 4000 feet (1219 m) at 28/0.3 Mbps.
• Autosensing, autonegotiating 10-/100-Mbps Ethernet port.
• Auto MDI/MDI-X
• DIP switches for master/slave configuration.
• Low latency.
• Installation is easy - just connect the extenders then configure them using simple DIP switches.
• This product is covered by one or more of the following: United States Patent Nos. 7,457,250; 8,902,760; and/or 9,019,838.
• Ethernet Extender Kit PoE. Extends 10/100Mbps Ethernet RJ45 over copper or CATx line interface, RJ45. The kit includes 2 extenders for near-end (local) far-end (remote) deployment. Typical applications include Enterprise LAN extension, campus LAN expansion.
• This kit includes a pair of auto-rate Ethernet extenders, using a standard 2-wire connection, which simplifies your life and provides a cost-effective network extension by enabling you to make the most of your pre-existing twisted-pair infrastructure.
• These 10BASE-T/100BASE-TX Ethernet Extenders use VDSL2 technology to provide an easy, inexpensive way to extend the reach of your Ethernet network over ordinary voice-grade copper wire. Devices include external 100-240VAC power supplies. The Kit features two extenders, one of which is a PoE PSE device, which supplies power (802.3af) to a PoE PD device such as an IP camera or wireless access point.
