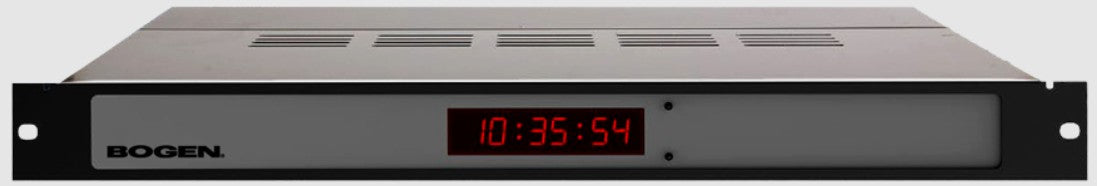

Bogen BCMA-2R0-0000-1 | Rack-Mount Master Clock
Regular price
$2,026.13
Unit price
Brand: Bogen Communications Inc.
|
SKU:
971901
Regular price
$2,026.13
Unit price
Description
Description
Bogen BCMA-2R0-0000-1 | Rack-Mount Master Clock
The BCMA 2000 Series is our standard master clock model with a front LED display and two push buttons for basic system programming. The BCMA 3000 Series comes with a front LED and LCD display as well as a keypad to allow for advanced programming. The BCMA 3000 model may also be offered with four or eight programmable relays (zones) to control third party systems via a contact closure (such as a school bell system).
Bogen - BCMA-2R0-0000-1 - Features

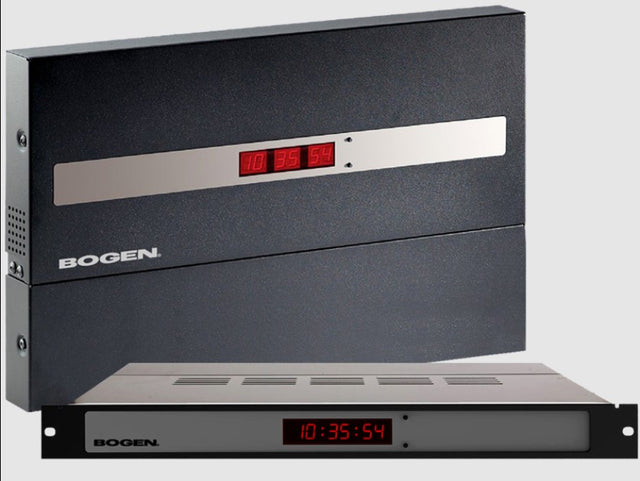

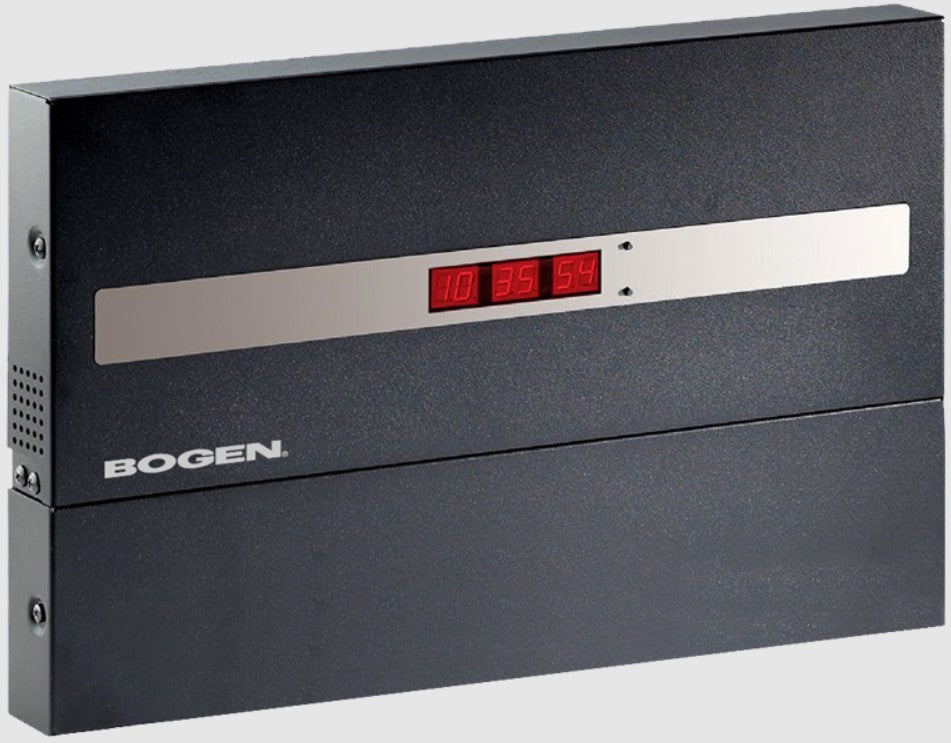

- Available in rack or wall mount housing
- LED display for a clear, accurate read out
- 12 or 24 hour display
- Two buttons for programming
- Intuitive built-in web interface that allows the system administrator to configure all the settings of the BCMA Series Master Clock easily from the convenience of any computer on the same network
- Blinking LED on master clock front panel to visually indicate a communication failure with the NTP server or GPS time source
- The master clock can be programmed to send an email alert when communication with the accurate time source has failed, when the master clock has been rebooted, when the fire alarm in the facility has been activated (if applicable)
- Control wired clock systems or wired and wireless clock systems simultaneously, if equipped with a transmitter
- Microprocessor based
- Ten year battery backup for keeping time and master clock settings
- DHCP Capable
Specifications
Specifications
Bogen - BCMA-2R0-0000-1 - Specifications
| Housing | Smooth surface metal case |
|---|---|
| Color | Black |
| Mounting | Wall Mount or Rack Mount |
| Display | 0.56” (1.42 cm) LED display |
| Calendar | Built-in calendar with leap years |
| Housing Dimensions (LxWxD) | 11.0” x 17.5” x 1.75” (27.94 cm x 44.45 cm x 4.45 cm) |
| Weight | 6.5 lbs. (2.95 kg) |
| Temperature Range | Operating: 32°F - 113°F (0°C - 45°C) |
| Voltage Input | 85 VAC – 264 VAC, 50/60 Hz |
| Power Consumption | 20 Watts |
| Ethernet Speed | 10/100 Mbps Full Duplex |
| Ethernet Port | RJ45 |
| Input Sensitivity | -112 dBm |
| RF Signal Output | 30 dBm (1 watt) |
| Transmission Frequency | Either 900 MHz or 2.4 GHz frequency-hopping technology |
| UNSPSC Code | 52161600 |
