Bogen Communications KFLDS30T | Wide-Dispersion Re-Entrant Horn Lou...
Description
Description

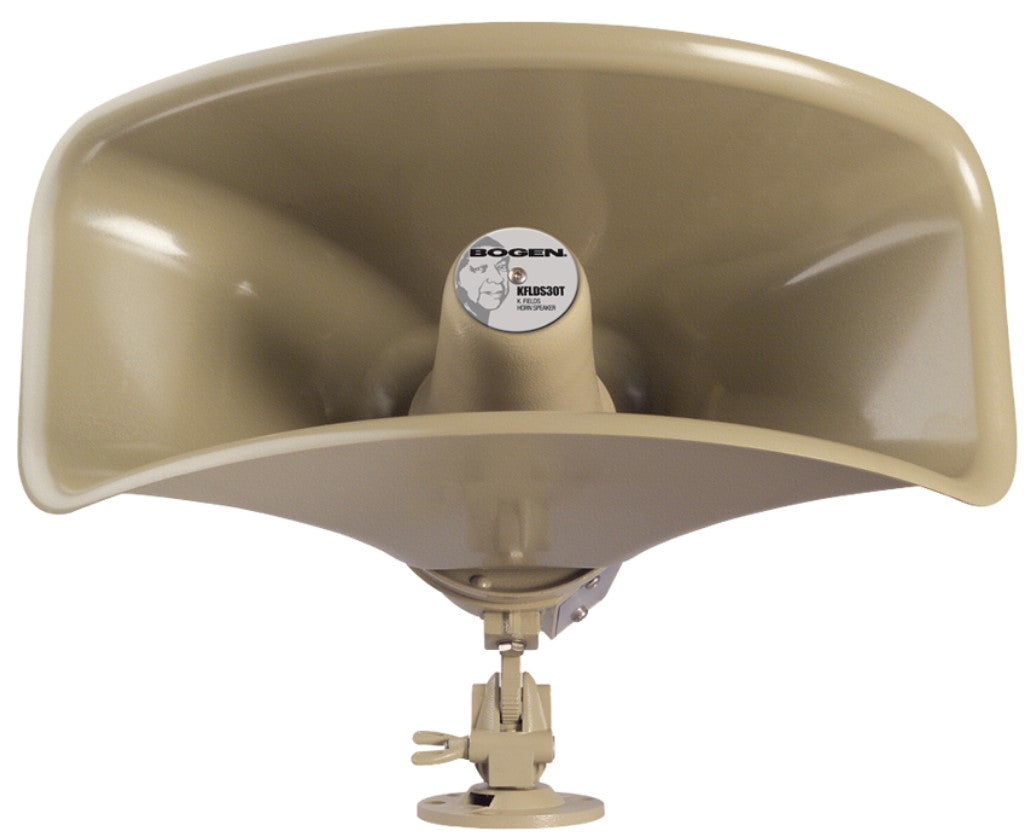

The Bogen KFLDS30T is a wide dispersion, high-intelligibility, re-entrant-type horn loudspeaker designed for applications where wide angle projection and directivity is a necessity. The flare-shaped horn can be rotated to project wider dispersion in either the horizontal or vertical plane. The speaker’s all-purpose tilt-and-swivel base simplifies installation and positioning. Its sturdy, weatherproof, polycarbonate and aluminum construction is ideal for both indoor and outdoor use. Screw terminals make installation fast and easy. A plastic cover protects the connectors and 70V/25V tap selector switch, as well as provides strain relief for the audio line.
Bogen Communications - KFLDS30T - Features
- 30 Watts max. @ 70 volts or 15 Watts max. @ 25 volts
- Weatherproof polycarbonate and aluminum construction
- Driver enclosed in weatherproof housing
- 70° × 95° dispersion with rotatable horn flare
- All-purpose mounting bracket provides precise positioning in the vertical & horizontal planes with a single adjustment
- Seven-position, weather-sealed tap selector switch
- Rotary switch-selected power taps
- Tap settings for 70V: 30, 15, 7.5, 3.7, 1.8 watts; for 25V: 15, 7.5, 3.7, 1.8, 0.9, 0.5, 0.25 watts
- Self-aligning, field-replaceable diaphragm
- High-intelligibility and efficiency
- Screw terminals for easy audio line connection
- Plastic cover protects connectors and tap selector switch, also provides strain relief for the audio line
- Textured mocha enamel finish on aluminum, matching polycarbonate horn flare
Specifications
Specifications
Bogen Communications - KFLDS30T - Specifications
| Power Rating | 30 Watts continuous (70V amplified systems); 15 Watts continuous (25V amplified systems) |
|---|---|
| Frequency Response | 300 Hz to 12 kHz |
| Impedance | 25/70 volts |
| Dispersion | 70° x 95°, rotatable horn flare |
| Dimensions | 14-3/8" W × 8-1/4" H × 12-7/8" D |
| Product Weight | 6 lb |
| Finish | Textured mocha enamel finish on aluminum, matching polycarbonate horn flare |
