Brand: Bogen Communications Inc. | SKU: 9790073

Bogen Communications NQ-P0100 | Nyquist 4-Channel Matrix Mixer Pre-Amp

Regular price $772.56
Shipping calculated at checkout.
  • Low prices.

    Price match guarantee

  • In-House Experts.

    We know our products

  • Easy Returns.

    Quick & Hassle Free

  • Superior Selection.

    Extensive product catalog

Description

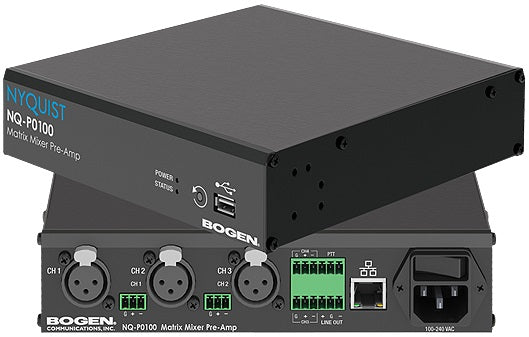

Bogen Communications NQ-P0100 | Nyquist 4-Channel Matrix Mixer Pre-Amp

Bogen’s Nyquist networked 4-Channel Matrix Mixer Pre-Amplifier (MMPA) offers cost-effective performance for permanent installations and commercial sound and is designed to meet the rigorous requirements of today’s sophisticated sound systems. Developed with the commercial sound contractor in mind, the MMPA provides unparalleled flexibility and versatility without the need for add-on modules. It includes state-of-the-art, built-in DSP for extensive and comprehensive signal processing–allowing users to skillfully manage and mix multiple audio input channels. The resulting audio signal mix can be directed to the MMPA’s line out or streamed over the Nyquist network, where it can be used for audio distribution to one or more zones. The MMPA fits a wide range of commercial audio applications that require multi-zone paging and/or background music distribution at businesses, restaurants, retail stores, industrial facilities, and many other venues.

Bogen Communications - NQ-P0100 - Features

  • 2 dedicated Balanced Line Inputs (both Phoenix plug & RCA)
  • Line Inputs can be routed-out over the Nyquist network
  • Network-based audio input (paging, audio distribution)
  • 4-ohm, 8-ohm, 25V, and 70V outputs
  • GUI based DSP control
  • 16-band Graphic Equalizer
  • Signal Present and Clip Monitor
  • Adjustable High Pass, Low Pass, and Bandpass Filters
  • Noise Gate
  • Compressor/Limiter
  • 7-band Parametric Equalizer
  • Switch selectable 2-Channel (4-ohm/25V) or 1-Channel bridged (8-ohm/70V) operation
  • Safety: CAN/CSA C22.2 No. 62368-1:2014; UL62368-1:2014; EN62368-1:2014
  • EMC: FCC Part 15b Class A; ICES-003, Issue 6: 2016; EN 55032:2012; EN55035:2017
  • 1/2 Rack Width - Wall, Rack, or Shelf mountable – 1RU and 2RU packages
  • 19” Rack Mount Kit (NQ-RMK03; sold separately)

Specifications

Bogen Communications - NQ-P0100 - Specifications

S/N Ratio97 dB
Power Output Bandwidth20 Hz- 20 kHz < .03% THD+N
THD+N @ 1 kHz rated power< .03%
Class of OperationClass D
CoolingConvection
ProtectionRF, DC, Low Frequency, Thermal, Low Impedance, Short Circuit, Clip Limiting

Documents and Downloads
