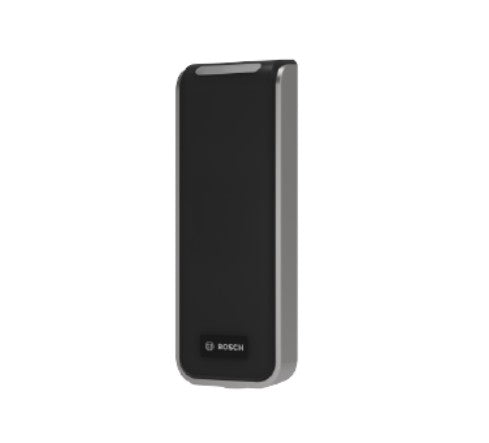

Bosch ARD-SIGR20-SEO | Card Reader, R20, SEOS, Wiegand
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Description
Description
The ARD-SIGR20-SEO belongs to the new LECTUS secure reader (Wiegand) family. The LECTUS secure (Wiegand) line consists of four different reader variants, one as mullion, with and without keypad, and as a compact reader, with and without keypad. Different form factors allow adaptation in different installation environments. The readers do support Seos card technology. To provide a wide range of solutions, the readers are fully compatible with the Bosch Access Management portfolio, including the Management Software Systems (BIS/ACE and AMS), as well as the Access Modular Controller (AMC2) and Seos credential portfolio. This reader is suitable for the US Gang Box, and it complies with the European standard as well. The LECTUS secure reader is very simple to use, and provides clear feedback to the user during operations due to LED and beeper. The readers are suited for indoor and outdoor environments.
Bosch - ARD-SIGR20-SEO - Features
- 13.56 MHz proximity compatible with access controllers with Wiegand interfaces
- IP65 rating allows indoor and outdoor installations
- Easy and quick mounting for cost saving installation
- Supports Seos card technology
- Quick reading response for high performance level
Specifications
Specifications
Bosch - ARD-SIGR20-SEO - Specifications
| Color | Black |
|---|---|
| Current consumption (mA) | 45 – 70 mA |
| Dimensions (H x W x D) (mm) | 121.50 x 45 x 21.5 mm |
| IP rating | IP65 |
| Keypad | No |
| Material | Polycarbonate |
| Operating temperature (°C) | -35 – 66 °C |
| Operating voltage (VDC) | 12 VDC |
| Reader interfaces | Wiegand |
| Reading format | Seos |
| Usage | Indoor; Outdoor |
| Weight (g) | 75 g |
| Wiring connection | Terminal Strip |
