Bosch D8129 | Octo-Output Module, form C Relays
Description
Description

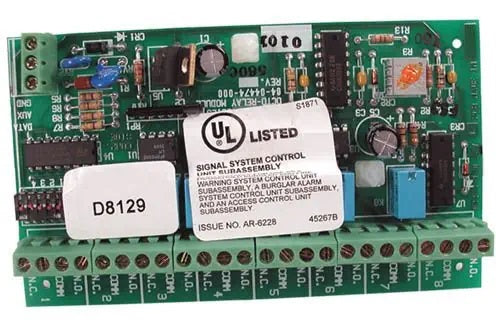

Octo-Relay 8 Relay Module For G Series. The D8129 Octo-relay Module is suitable for applications requiring Form C relays to operate auxiliary systems or to display fire system status at remote annunciators. Building components such as HVAC, door lock releases, and stairwell pressurization can interface with the D8129 for complete system control and monitoring. Industrial, commercial, and institutional facilities are typical installations for the D8129 module. The eight on-board relays can be programmed to activate on system alarm, system trouble, individual zone or point faults, and through remote control by authorized users.
Bosch Security ( Cctv ) Systems - D8129 - Features
- Programmable relay functions
- Provides eight Form C relays
- 1 A at 30 VDC relay contact rating
- Slide switch configuration
- Allows remote control of relays
- Programmable relay functions
- Provides eight Form C relays
- 1 A at 30 VDC relay contact rating
- Slide switch configuration
- Allows remote control of relays
- Screw terminal connections
Specifications
Specifications
Bosch Security ( Cctv ) Systems - D8129 - Specifications
| UNSPSC Code | 46171500 |
|---|
