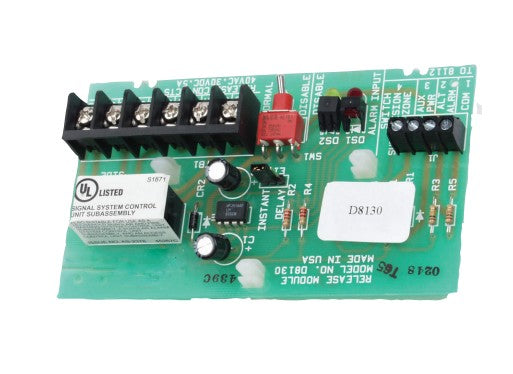

Bosch D8130 | Door Release Module
Regular price
$107.83
Unit price
Brand: Bosch Security ( Cctv ) Systems
|
SKU:
725840
Regular price
$107.83
Unit price
Description
Description
Bosch D8130 | Door Release Module
The D8130 Door Release Module is an accessory forfire alarm control panels (FACPs) that controls systemfunctions commonly required in National FirePrevention Association (NFPA) 72 fire alarminstallations. Two independent Form C dry contacts,each rated at 5 A, connect low-voltage circuits tomagnetic door holders, pilot relays, or contactor unitsfor function control.
Bosch - D8130 - Features
- Two Form C (5 A rated) contacts
- Remotely controls fire system devices
- Instant or delayed relay activation and restoral
- Relay closure follows indicating circuit duration
- Disable switch supervised for system testing
Specifications
Specifications
Bosch - D8130 - Specifications
| Dimensions (H x W x D): | 5 in. x 3 in. x 0.75 in. (12.7 cm x 7.6 cm x 1.9 cm) |
|---|---|
| Relays: | Two Form C dry contact |
| Relay Rating: | 5.0 A at 30 VDC maximum for resistive loads |
| Alarm | 60 mA maximum |
| Contacts Disabled | 15 mA |
| Standby | 7 mA |
| Nominal | 12 VDC nominal |
