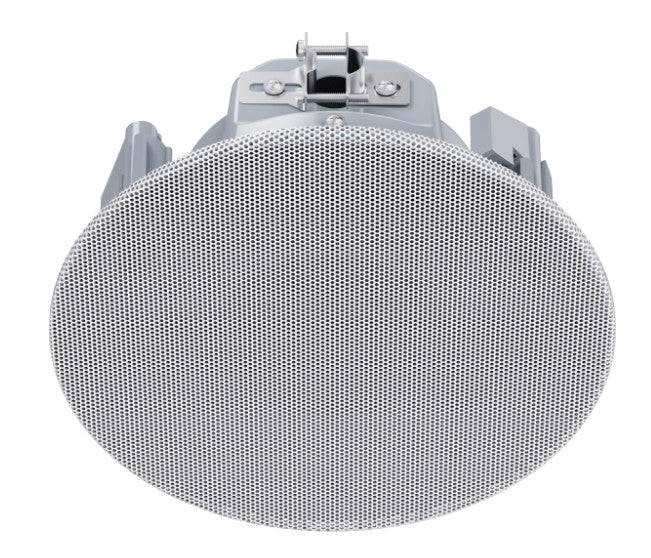

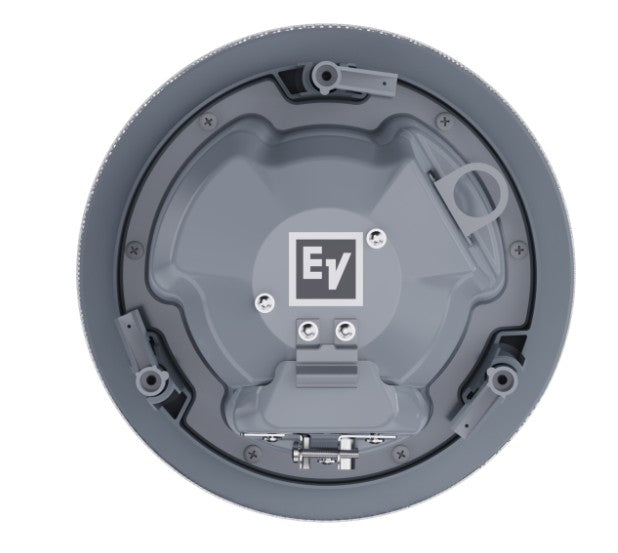

Bosch EVID-EC3.1 | Ceiling Speaker 3" 70/100V, White
Regular price
$114.04
Unit price
Brand: Bosch Security ( Cctv ) Systems
|
SKU:
10567450
Regular price
$114.04
Unit price
Description
Description
Bosch EVID-EC3.1 | Ceiling Speaker 3" 70/100V, White

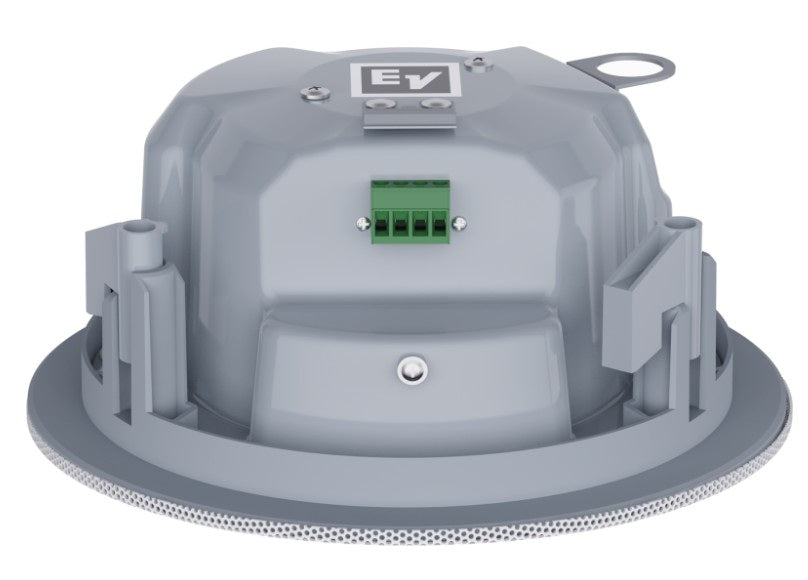

The Electro-Voice EVID-EC3.1 is a complete 3-inch coaxial two-way loudspeaker that offers excellent sound quality and outstanding reliability with firstclass aesthetics. The EVID-EC3.1 utilizes a transformer that offers a selection of 0.9 (70-V only), 1.88, 3.75, 7.5 or 15 watts delivered to the loudspeaker system using either 70-V or 100-V lines, or 8-ohm bypass. Selection is via a convenient switch on the front baffle. The perforated grille is finished in semi-gloss white powder-coated enamel. The baffle is constructed from UL 94V-0 rated ABS. The rear enclosure is constructed from heavy gauge coated steel. The low-profile enclosure makes it easy to mount in very tight spaces. A side terminalcover provides access to a 4-pin terminal block that allows direct connection to the speaker with 12-gauge and 3.3 mm2-wire and provides pass through to additional speakers.g
The Electro-Voice EVID-EC3.1 is a complete 3-inch coaxial two-way loudspeaker that offers excellent sound quality and outstanding reliability with firstclass aesthetics. The EVID-EC3.1 utilizes a transformer that offers a selection of 0.9 (70-V only), 1.88, 3.75, 7.5 or 15 watts delivered to the loudspeaker system using either 70-V or 100-V lines, or 8-ohm bypass. Selection is via a convenient switch on the front baffle. The perforated grille is finished in semi-gloss white powder-coated enamel. The baffle is constructed from UL 94V-0 rated ABS. The rear enclosure is constructed from heavy gauge coated steel. The low-profile enclosure makes it easy to mount in very tight spaces. A side terminalcover provides access to a 4-pin terminal block that allows direct connection to the speaker with 12-gauge and 3.3 mm2-wire and provides pass through to additional speakers.g
Bosch - EVID-EC3.1 - Features
- Bezel-less design with easy-attach grille

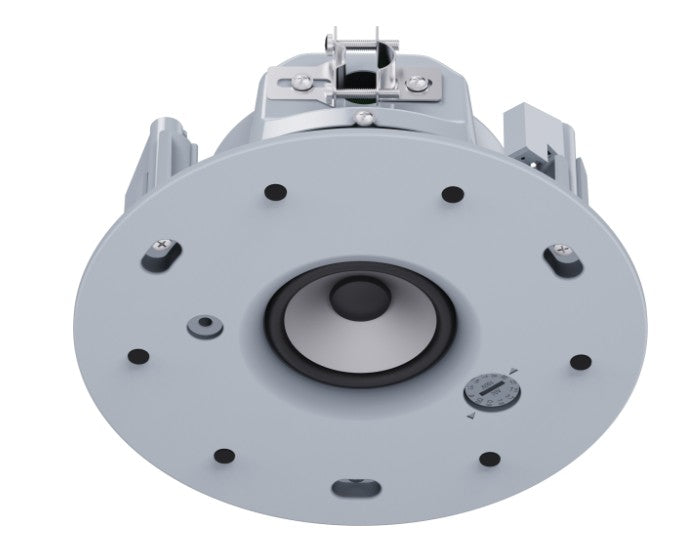

- Front baffle wattage tap adjustment
- Includes tile bridge and C-ring for easy installation
Specifications
Specifications
Bosch - EVID-EC3.1 - Specifications
| Frequency range (-10 dB) (Hz) | 90 Hz – 19,000 Hz |
|---|---|
| Maximum SPL (continuous) (dB) | 99 dB |
| Sensitivity (1 W, 1 m) | 84 dB SPL 1 W, 1 m |
| Transformer taps 70 V line (W) | 0.9 W; 1.88 W; 3.75 W; 7.5 W; 15 W |
| Material | Steel |
| Grille material | Powder coated steel |
| Wire size (AWG) | 12AWG (maximum) |
| Color | White; Customized colors |
| Dimensions | 8.4 in x 3.9 in |
| Mounting depth | 3.7 in |
| Weight (lb) | 3.10 lb |
| Operating temperature (°F) | 32 °F – 104 °F |
