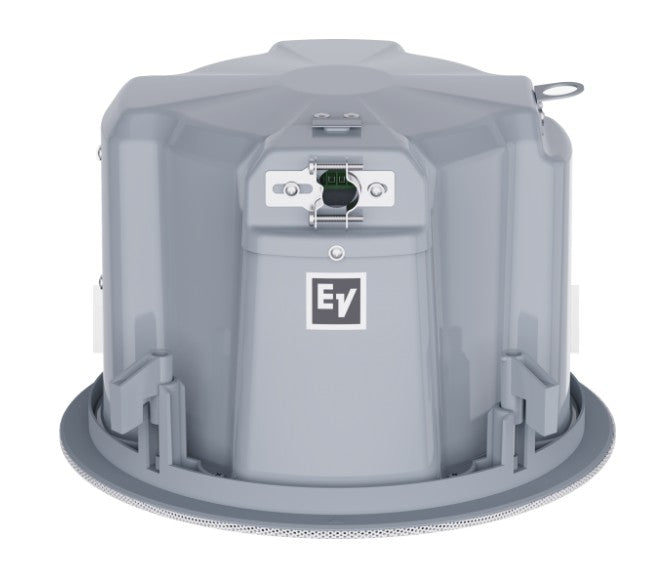

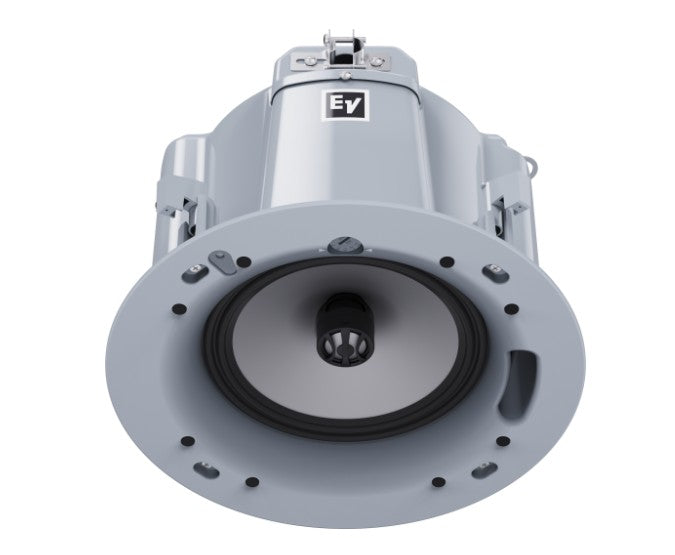

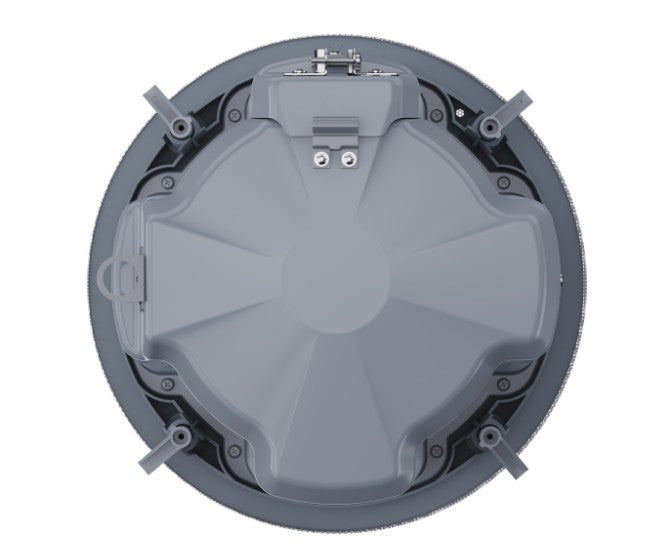

Bosch EVID-EC8.2 | Ceiling Speaker 8" 70/100V, White
Regular price
$272.99
Unit price
Brand: Bosch Security ( Cctv ) Systems
|
SKU:
10567456
Regular price
$272.99
Unit price
Description
Description
Bosch EVID-EC8.2 | Ceiling Speaker 8" 70/100V, White

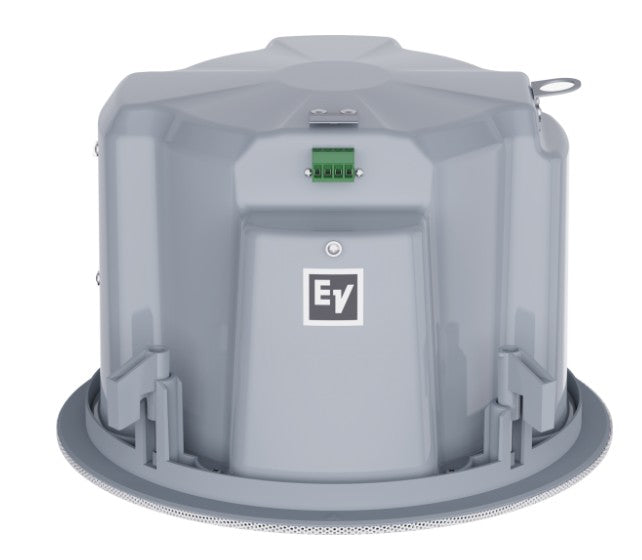

The EVID-EC8.2 utilizes a transformer that offers a selection of 1.88 (70-V only), 3.75, 7.5, 15 or 30 watts delivered to the loudspeaker system using either 70-V or 100-V lines, or 8-ohm bypass. Selection is via a convenient switch on the front baffle. The perforated grille is finished in semi-gloss white powder-coated enamel. The baffle is constructed from UL 94V-0 rated ABS. The rear enclosure is constructed from heavy gauge coated steel. The low-profile enclosure makes it easy to mount in very tight spaces. A side terminalcover provides access to a 4-pin terminal block that allows direct connection to the speaker with 12-gauge and 3.3 mm2-wire and provides pass through to additional speakers.
The EVID-EC8.2 utilizes a transformer that offers a selection of 1.88 (70-V only), 3.75, 7.5, 15 or 30 watts delivered to the loudspeaker system using either 70-V or 100-V lines, or 8-ohm bypass. Selection is via a convenient switch on the front baffle. The perforated grille is finished in semi-gloss white powder-coated enamel. The baffle is constructed from UL 94V-0 rated ABS. The rear enclosure is constructed from heavy gauge coated steel. The low-profile enclosure makes it easy to mount in very tight spaces. A side terminalcover provides access to a 4-pin terminal block that allows direct connection to the speaker with 12-gauge and 3.3 mm2-wire and provides pass through to additional speakers.
Bosch - EVID-EC8.2 - Features
- Bezel-less design with easy-attach grille
- Front baffle wattage tap adjustment
- Includes tile bridge and C-ring for easy installation
Specifications
Specifications
Bosch - EVID-EC8.2 - Specifications
| Frequency range (-10 dB) (Hz) 1 | 75 Hz – 20,000 Hz |
|---|---|
| Maximum SPL (continuous) (dB) 2 | 110 dB |
| Maximum SPL (peak) (dB) 3 | 116 dB |
| Sensitivity (1 W, 1 m) 4 | 92 dB SPL 1 W, 1 m |
| Coverage angle conical (°) | 90° |
| Power handling (continuous) (W) 5 | 60 W |
| Power handling (peak) (W) 5 | 240 W |
| Nominal impedance (?) (Low Z) | 8 ? |
| Recommended high pass (Hz) 6 | 70 Hz |
| Material | Steel |
| Grille material | Powder coated steel |
| Color | White; Customized colors |
| Mounting cutout (in) | 10.70 in |
| Dimensions (Ø x D) (in) | 11.9 in x 7.8 in |
| Mounting depth (in) | 7.6 in |
| Weight (lb) | 11 lb |
| Operating temperature (°F) | 32 °F – 104 °F |
