Brand: Bosch Security ( Cctv ) Systems
|
SKU:
941408
Bosch MIC-9502-Z30GVS | PTZ Thermal VGA-50mm 2MP 30x 9hz, Gray
Regular price
$32,872.72
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Bosch MIC-9502-Z30GVS | PTZ Thermal VGA-50mm 2MP 30x 9hz, Gray
Regular price
$32,872.72
Unit price
Brand: Bosch Security ( Cctv ) Systems
|
SKU:
941408
Regular price
$32,872.72
Unit price
Shipping calculated at checkout.
Description
Description

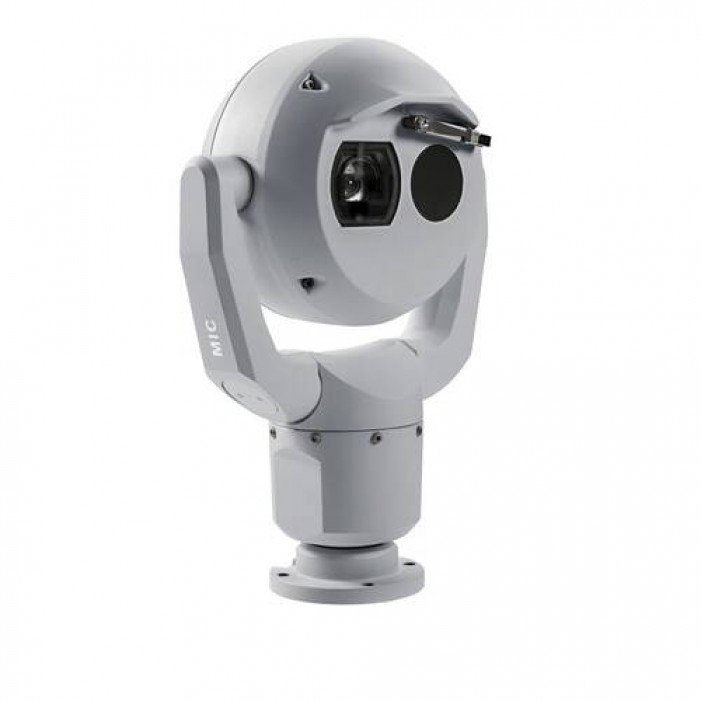

Ruggedized dual thermal/visible PTZ camera.30x visible zoom. Thermal imager with high resolution (640x480 pixels), <9 Hz frame rate, and 50 mm lens. Grey housing color.
Features
- Ruggedized IP PTZ camera with high performance thermal imager and HD visible imager sitting side-by-side
- Designed to provide the highest availability of useable images regardless of lighting conditions in extreme environments (weather, dust/debris/smoke, etc.)
- Unique metadata fusion feature provides the ultimate in situation awareness
- Exceptional early detection capabilities: Object detection up to 4517 m (14,820 ft) based on DRI criteria
- Advanced on-board intelligent video tracking, object detection even when camera is on tours
Specifications
Specifications
Specifications
| Camera Signal | Network IP |
|---|---|
| Connection Type | Wired |
| Infrared Distance | Non Infrared |
| Resolution | 2 Megapixel |
| Lens Type | Motorized Zoom |
| Lens Size | 30X |
| Mount Type | Pedestal |
| Compression Method | H.264, M-JPEG, JPEG, H.265 |
| Durability | Vandal Resistant, Weather Resistant |
| Voltage | 21-30vAC, PoE |
| Dimensions (W x H) | 421 mm x 298 mm x 181 mm (11.74 in. x 16.58 in. X 7.14 in.) |
| Electronic Shutter | 1/1 sec to 1/10000 sec (22 steps) |
| Image Device | 1/2.8-type Exmor R CMOS sensor |
| Image Pixels-Effective | 1945 x 1097 (2.13 MP) |
| Operating Humidity | 0-100% |
| Operating Temperature | -40 °C to +65 °C (-40 °F to +149 °F) |
| OSD Menu | English, Czech, Dutch, French, German, Italian, Polish, Portuguese, Russian, Spanish, Japanese, Chinese |
| Power Consumption | 72W |
| Privacy Zone | 32, individually configurable; maximum 8 per Preposition; programmable with 3, 4 or 5 corners |
| Protocols | IPv4, IPv6, UDP, TCP, HTTP, HTTPS, RTP/ RTCP, IGMP V2/V3, ICMP, ICMPv6, RTSP, FTP, ARP, DHCP, APIPA (Auto-IP, link local address), NTP (SNTP), SNMP (V1, MIB-II),802.1x, DNS, DNSv6, DDNS (DynDNS.org, selfHOST.de, no-ip.com), SMTP, iSCSI, UPnP (SSDP), Diff |
| S/N Ratio | >55 dB |
| Weatherproof | IP68 |
| Angle of View | 2.3° to 63.7° |
| Rotation Angle | 296º |
| Automatic White Balance | 2000 K to 10,000 K ATW, AWB Hold, Extended ATW, Manual, Sodium Lamp Auto, Sodium Lamp |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Heater & Fan | Yes |
| On Screen Display Menu | Yes |
| Privacy Masking | Yes |
