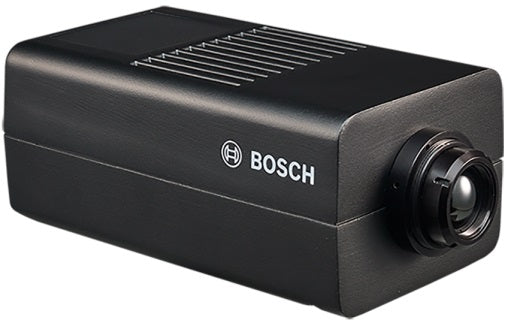

Bosch NBT-9000-F19QSM | Fixed Thermal <9Hz QVGA 19mm Radiometric

The NBT-9000-F19QSM from Bosch is a Indoor <9Hz QVGA Radiometric Thermal Imaging IP Network Camera, 19mm Lens. The DINION IP thermal 9000 RM camera, based on an un-cooled vanadium oxide microbolometer, is a contactless tool to measure surface temperature at short range. The camera has a QVGA sensor with a frame rate of 9 FPS. The camera is part of the indoor system for surface temperature measurement. Key components of the system include the camera, an embedded VIDEOJET decoder 7000 computer with thermal data analytics (VJD-7513), a keyboard (KBD-UXF), and a specific firmware license.

The system combines thermal temperature detection with the market-leading Intelligent Video Analytics from Bosch. Quick, on-site calibration and temperature threshold setup enables the system for alarming in cases where the surface temperature of an object or of human skin is warmer than the configured threshold. The system can monitor historical temperature data continuously for deviations, and will then estimate the new threshold in order to mitigate the environmental influences.
