Brand: Bosch Security ( Cctv ) Systems
|
SKU:
526455

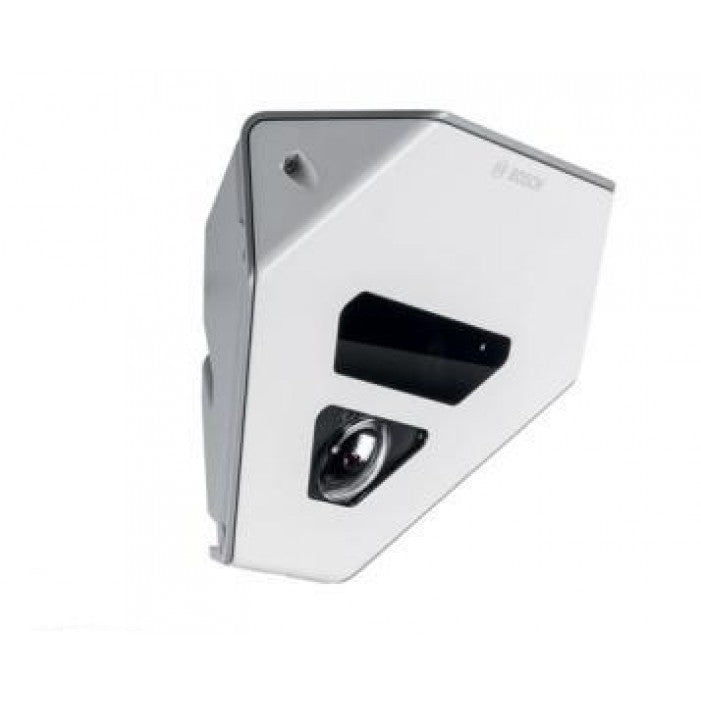

Bosch NCN-90022-F1 | Corner Camera 1.5MP 121 IP65 940nm IR
Regular price
$1,371.71
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Bosch NCN-90022-F1 | Corner Camera 1.5MP 121 IP65 940nm IR
Regular price
$1,371.71
Unit price
Brand: Bosch Security ( Cctv ) Systems
|
SKU:
526455
Regular price
$1,371.71
Unit price
Shipping calculated at checkout.
Description
Description
High-performance integrated infrared IP corner-mount day/night camera with fixed 2 mm lens for audio/motion detection.
Features
- Corner-mount, no-grip design for maximum safety
- 1.5 MP resolution for sharp images
- Views an entire small room, including directly beneath
- 940 nm illuminator for covert night vision to 9 m (30 ft)
- IP65 water resistance
Specifications
Specifications
Specifications
| Camera Signal | Network IP |
|---|---|
| Connection Type | Wired |
| Infrared Distance | 0~60 Feet |
| Resolution | 1.5 Megapixel |
| Lens Type | Fixed |
| Lens Size | 2mm |
| Mount Type | Corner |
| Compression Method | H.264, M-JPEG |
| Durability | Vandal Resistant, Weather Resistant |
| Voltage | 12vDC, 24vAC, PoE |
| Dimensions (W x H) | 240 x 146 x 169 mm (9.45 x 5.75 x 6.65 in.) |
| Electronic Shutter | Automatic Electronic Shutter (AES) Fixed 1/30 (1/25) to 1/15000 |
| Image Device | 1/2.7-inch CMOS |
| IR LEDs | 3 high efficiency LEDs |
| IR Wavelength | 940 nm |
| Minimum Scene Illumination | 0.61 lx (color), 0.0 lx (IR) |
| Operating Humidity | 20% to 90% relative humidity (non condensing) |
| Operating Temperature | -10 ºC to +50 ºC (14 ºF to +122 ºF) |
| Power Consumption | 8.4 W max. (12 VDC, PoE), 10.8 VA max. (+24 VAC) |
| Protocols | IPv4, IPv6, UDP, TCP, HTTP, HTTPS, RTP/RTCP, IGMP V2/V3, ICMP, ICMPv6, RTSP, FTP, Telnet, ARP, DHCP, SNTP, SNMP, 802.1x, DNS, DNSv6, DDNS, SMTP, iSCSI, UPnP (SSDP), DiffServ (QoS), LLDP, SOAP, Dropbox, CHAP, Digest Authentication |
| Weatherproof | IP65 |
| Digital Noise Reduction | Intelligent Dynamic Noise Reduction (iDNR) |
| Angle of View | Horizontal: 121°, Vertical: 91° |
| IR Distance | 9 m (30 ft) |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| ONVIF | Yes |
