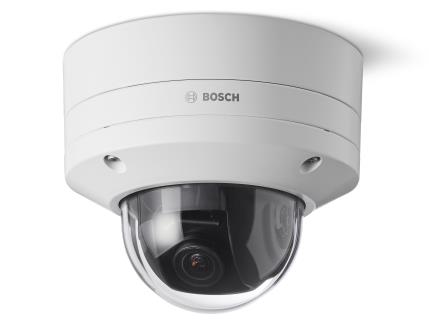

Bosch NDE-8703-R | Dome PTRZ 6MP HDR 3.9-10mm IP6K9K
Description
Description
Starlight technology provides low-light sensitivityensuring highly detailed images even in the mostchallenging situations. HDR enables the camera tocapture video across different light levels andwithout motion blur and artefacts on moving objects.The camera’s remote commissioning functionalityensures installation and commissioning in theminimum amount of time. Using a PC or a mobiledevice with the Project Assistant app, you can pan,tilt, roll and zoom (PTRZ) and point the camera tothe required field of view with a single click, withoutever having to touch the camera or lens.
The latest CPP14 platform provides powerfulprocessing capabilities and built-in neural processingengine to enable deep learning based IVA Pro videoanalytics, bringing highly reliable detection ofpersons and vehicles, even in crowded scenes.
Bosch - NDE-8703-R - Features
- Remote configuration and commissioning. Pan, Tilt, Roll and Zoom (PTRZ) remotely to set the camera to the required field of view, without having to touch the camera or lens
- Starlight technology with 1/1.8" HD 6MP sensor for next level low-light performance with maximum detail
- High Dynamic Range (HDR) to see every detail in both bright and dark areas of the scene
- IVA Pro brings highly reliable deep-learning based detection of persons and vehicles to scenes ranging from sterile to crowded and congested zones
- Electronic image stabilization (EIS) measures the frequency and amplitude of the device’s vibrations to offset their impact on the image
Specifications
Specifications
Bosch - NDE-8703-R - Specifications
| Field of view adjustment | Motorized pan, tilt, roll; Autofocus |
|---|---|
| Frame rate (fps) | 1 – 30 fps |
| Horizontal field of view (º) | 117 – 44 ° |
| IP rating | IP66; IP67; IP6K9K |
| Lens focal length (mm) | 3.9 – 10 mm |
| Low light technology | starlight |
| Operating temperature (°C) | -50 – 60 °C |
| Operating temperature (°F) | -58 – 140 °F |
| Resolution | 1920 x 1080; 1280 x 1024; 1280 x 720; 704 x 480; 854 x 480; 3072 x 1728; 1920 x 1440; 3264 x 1840 |
| Sensor type | 1/1.8 inch CMOS |
| Video compression | H.264 (ISO/IEC 14496-10); M-JPEG; H.265/HEVC |
| WDR technology | HDR |
