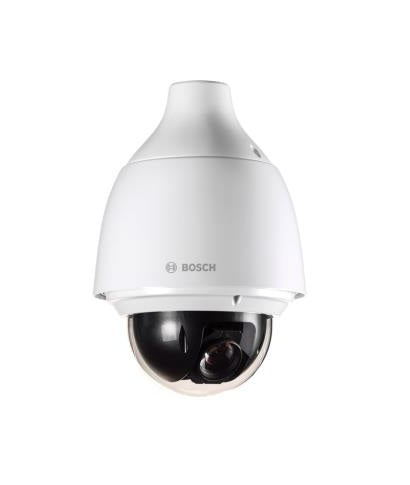

Bosch NDP-5522-Z30 | PTZ Camera 2MP 30x IP66 Pendant
Regular price
$2,635.95
Unit price
Brand: Bosch Security ( Cctv ) Systems
|
SKU:
10526611
Regular price
$2,635.95
Unit price
Description
Description
Bosch NDP-5522-Z30 | PTZ Camera 2MP 30x IP66 Pendant
The camera is designed on the most efficient and powerful H.264 and H.265/HEVC encoding platform. The camera is capable of delivering high-quality and high-resolution video with very low network load. With a doubling of encoding efficiency, H.265 is the compression standard of choice for IP video surveillance systems.
The camera is designed on the most efficient and powerful H.264 and H.265/HEVC encoding platform. The camera is capable of delivering high-quality and high-resolution video with very low network load. With a doubling of encoding efficiency, H.265 is the compression standard of choice for IP video surveillance systems.
Bosch - NDP-5522-Z30 - Features
- Starlight camera technology with excellent low-light performance
- 120dB dynamic range lets you capture details in overexposed situations with confidence
- Intelligent streaming, IDNR and H.265 reduce bit rate by up to 80%
- Built-in Essential Video Analytics to trigger relevant alerts and quickly retrieve data
- High resolution bubble to ensure maximum effective resolution output
- Simple installation with flexible mounting options (in-ceiling or pendant mounting)
Specifications
Specifications
Bosch - NDP-5522-Z30 - Specifications
| Camera functionality | Backlight compensation (BLC); Display stamping |
|---|---|
| Color (lx) | 0.0186 lx |
| Effective pixels (H x V) | 1945 x 1097 |
| Ethernet type | 10/100BASE-T |
| Input voltage (VAC) | 24 VAC |
| Iris control | Automatic (with manual override) |
| Lens aperture (/F) | 1.6 – 4.4 /F |
| Lens focal length (mm) | 4.5 – 135 mm |
| Lens zoom (x) | 30 x |
| Material | Aluminum; Sunshield: Outdoor; Grade: Plastic |
| Monochrome (lx) | 0.0040 lx |
| Operating temperature (°C) | -40 – 60 °C |
| Pan range (°) | 0° – 360° continuous |
| Pre-position accuracy (average) (°) | 0.10 ° |
| Sensor type | 1/2.8 inch CMOS |
| Storage temperature (°C) | -40 – 60 °C |
| Video compression | H.264 (ISO/IEC 14496-10); M-JPEG; H.265/HEVC |
| Weight (kg) | 3.25 kg |
