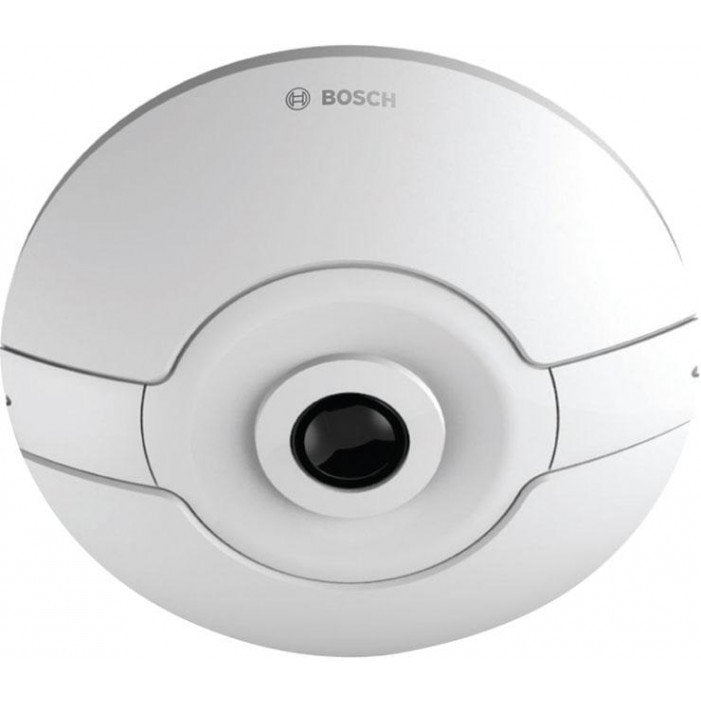

Bosch NIN-70122-F0S | Fixed Dome 12MP 360 Surface-mount
Regular price
$777.47
Unit price
Brand: Bosch Security ( Cctv ) Systems
|
SKU:
648519
Regular price
$777.47
Unit price
Description
Description
High-performance 12MP sensor low-profile camera for intelligent panoramic surveillance 360 lens Surface mount box Essential Video Analytics.
Features
- 12MP / 30 fps sensor for fine details with smooth motion
- Edge or client-side dewarping for easy integration
- Discreet and aesthetic, low-profile design
- Easy twist-click installation
- Essential Video Analytics on full panoramic overview
Specifications
Specifications
Specifications
| Camera Signal | Network IP |
|---|---|
| Connection Type | Wired |
| Infrared Distance | Non Infrared |
| Resolution | 12 Megapixel |
| Lens Type | Fixed |
| Lens Size | 1.6mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, M-JPEG |
| Durability | Indoor, Vandal Resistant |
| Voltage | 48vDC, PoE |
| Dimensions (W x H) | 158 x 33 mm (6.22 x 1.30 in) |
| Electronic Shutter | Automatic Electronic Shutter (AES) Fixed (1/30 [1/25] to 1/15000) selectable Default shutter |
| Image Device | 1/2.3-inch CMOS |
| Minimum Scene Illumination | Color: 0.55 lx, Mono: 0.18 lx |
| Operating Humidity | 20% to 93% RH |
| Operating Temperature | -20°C to +40°C (-4°F to 104°F) |
| Power Consumption | 140 mA, 200 mA (IVA version) |
| Privacy Zone | Eight independent areas, fully programmable |
| Protocols | IPv4, IPv6, UDP, TCP, HTTP, HTTPS, RTP/RTCP, IGMP V2/V3, ICMP, ICMPv6, RTSP, FTP, Telnet, ARP, DHCP, APIPA (Auto-IP, link local address), NTP (SNTP), SNMP (V1, MIBII), 802.1x, DNS, DNSv6, DDNS (DynDNS.org, selfHOST.de, no-ip.com),SMTP, iSCSI, UPnP (SSDP) |
| S/N Ratio | >50 dB |
| Digital Noise Reduction | Intelligent Dynamic Noise Reduction with separate temporal and spatial adjustments |
| Back Light Compensation | Off / On / Intelligent Auto Exposure (BLC) |
| Automatic White Balance | 2500 to 10000K, 4 automatic modes (Basic, Standard, Sodium vapor, Dominant color), Manual mode and Hold mode |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
