Brand: Bosch Security ( Cctv ) Systems
|
SKU:
10325169

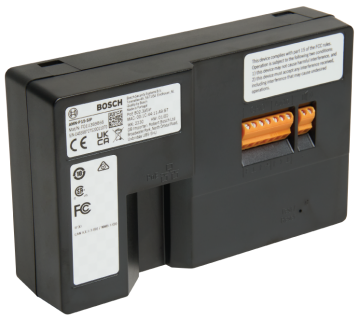

Bosch Security Systems AMN-P15-SIP | Amplifier Module 15W, SIP
Regular price
$616.78
Unit price
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Bosch Security Systems AMN-P15-SIP | Amplifier Module 15W, SIP
Regular price
$616.78
Unit price
Brand: Bosch Security ( Cctv ) Systems
|
SKU:
10325169
Regular price
$616.78
Unit price
Description
Description
Bosch Security Systems AMN-P15-SIP | Amplifier Module 15W, SIP
The new Bosch SIP based IP Amplifier module is designed as a flexible solution. It interfaces with an IP SIP system on one side and has low impedance and/or line level out on the other side for connection to loudspeaker(s) directly or via a (local) amp lifier.
Bosch Security Systems - AMN-P15-SIP - Features
- Full IP for power (PoE), communication (SIP) and control
- Low impedance loudspeaker connection and amplifier line out
- Class D amplifier and Digital Signal Processing (DSP)
- Remotely configurable via Web-GUI
Specifications
Specifications
Bosch Security Systems - AMN-P15-SIP - Package Includes
- Amplifier module
- DIN adapter plate with 2 screws
- Quick installation guide
- Safety information
- China RoHS information
Bosch Security Systems - AMN-P15-SIP - Product Categories
- Audio and Visual
- Audio Equipment
- Amplifiers
Bosch Security Systems - AMN-P15-SIP - Specifications
| Brand Name | Bosch Security Systems |
|---|---|
| Manufacturer Part Number | AMN-P15-SIP |
| Item Description | Amplifier Module 15W, SIP |
| UNSPSC Code | 52161600 |
| Power over Ethernet | PoE IEEE 802.3af Class 3PoE+ IEEE 802.3at Class 4 |
| Power consumption | PoE, <5 W in Idle<7 W at 1/8th of rated power<13 W at rated power |
| PoE+ | <6 W in Idle<9 W at 1/8th of rated power<26 W at rated power |
| Ethernet | 100BASE-TX, 1000BASE-T |
| Protocols | IPv4, SIP, NTP, TCP, UDP, HTTP, HTTPS, ONVIF (Discovery) |
| SIP audio codecs | G.711 (u-law and a-law), G.722, Opus |
| Ports | 1x RJ45 |
| Type | Class D amplifier |
| Rated power (W) | 7 W with PoE (4-8 ?)15 W with PoE+ (4-8 ?) |
| Maximum output level | 10.95 V |
| THD+N (3 dB below max., @1 kHz) | <0.03% |
| Signal to Noise Ratio (A-weighted) | >95 dB |
| Type | 1 line-level input, 1 line-level output; unbalanced |
| Connector | 3-pin screw terminals |
| Accepted Wire gauge | AWG 28 ?AWG 14 |
| Maximum level line input | 1 V |
| Maximum level line output | 1 V |
| Line input impedance | >10 k? |
| Sample rate | 48 kHz |
| Line output impedance | <100 ? |
