Brand: Bosch Security ( Cctv ) Systems
|
SKU:
10354950

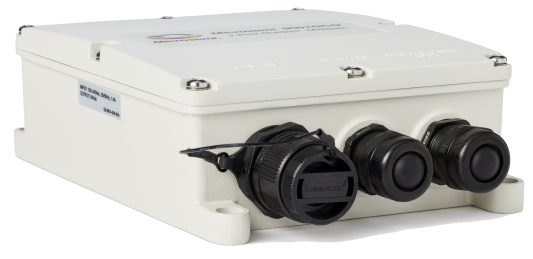

Bosch Security Systems NPD-6001C-EBT | 60W IEEE 802.3BT, Single Port, 100-240VAC Input, Outdoor. TAA Compliant
Regular price
$738.14
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Bosch Security Systems NPD-6001C-EBT | 60W IEEE 802.3BT, Single Por...
Regular price
$738.14
Unit price
Brand: Bosch Security ( Cctv ) Systems
|
SKU:
10354950
Regular price
$738.14
Unit price
Shipping calculated at checkout.
Description
Description
Bosch Security Systems NPD-6001C-EBT | 60W IEEE 802.3BT, Single Port, 100-240VAC Input, Outdoor. TAA Compliant
Bosch Security Systems - NPD-6001C-EBT - Features
- Makes PoE cameras easy to install
- Plug-and-play installation
- For outdoor usage
- One part-number for worldwide use (AC connector)
- Includes integrated 6kV surge protection
Specifications
Specifications
Bosch Security Systems - NPD-6001C-EBT - Package Includes
- PoE Midspan
- Waterproof gland
- Quick installation guide
Bosch Security Systems - NPD-6001C-EBT - Product Categories
- Networking
- Networking
- Power Over Ethernet
Bosch Security Systems - NPD-6001C-EBT - Specifications
| Brand Name | Bosch Security Systems |
|---|---|
| Manufacturer Part Number | NPD-6001C-EBT |
| Item Description | 60W IEEE 802.3BT, Single Port, 100-240VAC Input, Outdoor. TAA Compliant |
| Type | Midspan |
| UNSPSC Code | 43222600 |
| PoE input | Supports IEEE 802.3bt type 3 standard PDs |
| PoE output pin assignment and polarity | 4/5 ( + ), 7/8 ( - ), 1/2( - ), 3/6( + ) |
| PoE output power voltage (VDC) | 54 VDC |
| PoE output user port power (W) | 60 W (guaranteed) |
| Input voltage (VAC) | 100 VAC ?240 VAC (?10%) |
| Input current (A) | 2 A at 100 - 240 VAC |
| AC frequency (Hz) | 50 - 60 Hz |
| Maximum heat loss (BTU/h) | 35 BTU/h |
| Number of ports | 1 |
| Data rates (Mbps) | 10/100/1000 Mbps |
| Connectors | Shielded RJ-45 (with gasket), AC connector |
| Reliability | MTBF: 200,000 h at 25 ? |
| Operating temperature (?) | -40 ? ?65 ? |
| Operating temperature (?) | -40 ? ?149 ? |
| Storage temperature (?) | -40 ? ?85 ? |
| Storage temperature (?) | -40 ? ?185 ? |
| Operating relative humidity, non-condensing (%) | 0.95 |
| Storage relative humidity (%) | 0.95 |
| Maximum operating altitude (m) | 2000 m |
| Maximum operating altitude (ft) | 6560 ft |
