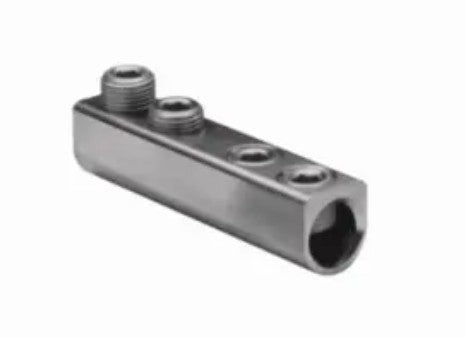

Burndy AMS750 | Aluminum Set Screw Splice, 750-250 kcmil, Dual-Rated Al/Cu
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Description
Description
Mechanical Splice for 250-750 kcmil, Dual Rated, 4 Screws. Solid center barrier prevents contact of dissimilar metals.
Burndy - AMS750 - Features
- Standard mounting hole diameter is .562” for 1/2” bolts
- The end wall within the cable socket of this design is solid and pressure tight
- Connectors are pre-filled and plugged with electrical joint compound
- Marked with catalog number, conductor size and die reference
- Meets performance requirements of ANSI C119.4
Specifications
Specifications
Burndy - AMS750 - Specifications
| Application | For Use With Copper And Aluminum Conductors |
|---|---|
| Catalog Number | AMS750 |
| Connector Type | In-Line |
| Die Size | Kearney 11/2 |
| Hex Size | 1/2 |
| Installation Torque Recommended in-lb | 500 LBS/in |
| Material | Aluminum |
| Material - Hardware | Aluminum |
| Physical Attribute - Number of Screws | 4 |
| Physical Attribute - Screw Type | Allen |
| Plated | Yes |
| Plating Type | Tin |
| Sub Brand | SPLICER/REDUCER |
| Temperature Rating | 194° F |
| Type | AMS, Dual Rated |
| UPC | 781810241066 |
| UPC 14 Digit GTIN | 00781810241066 |
