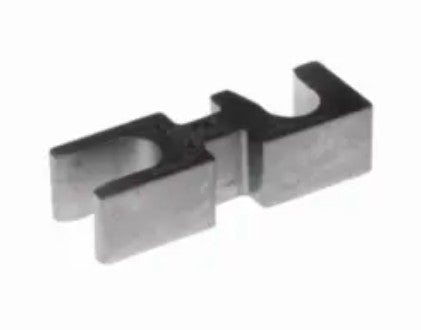

Burndy ASA800U | Aluminum Terminal Stacking Adapter, Al/Cu, 2-Slot, 800 kcmil
Terminal Stacking Adaptor, Dual Rated for Al/Cu. Use with 2 or 4-hole copper or aluminum terminals. Max Conductor 800 kcmil, 1.37" Insulation OD.
Burndy - ASA800U - Features
- For use on terminals made from copper or aluminum
- May be used with standard NEMA two and four hole terminals
- TO stack four hole NEMA terminations use two stacking adapters assembled side-by-side
- Only three sizes necessary to accommodate terminals from 250 kcmil through 1000 kcmil
Specifications
Specifications
Burndy - ASA800U - Specifications
| Application | For Aluminum And Copper Terminals |
|---|---|
| Catalog Number | ASA800U |
| Installation Torque Recommended in-lb | 480 LBS/in |
| Material | Aluminum |
| Material - Hardware | DURIUM™ Silicon Bronze |
| Physical Attribute - Number of Holes | 2 |
| Physical Attribute - Number of Screws | 2 |
| Physical Attribute - Screw Type | Hexagonal Bolt |
| Plated | Yes |
| Plating Type | Tin |
| Sub Brand | HYSTACK |
| Temperature Rating | 194° F |
| Trade Name | HYSTACK™ |
| Type | Stacking Adapters |
| UPC | 781810521021 |
| UPC 14 Digit GTIN | 00781810521021 |
