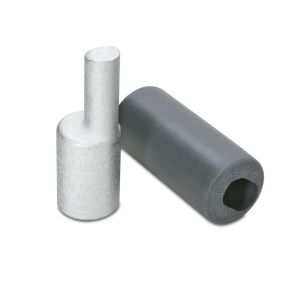

Burndy AYPO600 | 397037 | Hyplug, Compression Pin Adapter Offset
Regular price
$102.09
Unit price
Brand: Burndy
|
SKU:
AYPO600
Regular price
$102.09
Unit price
Description
Description
Burndy AYPO600 | 397037 | Hyplug, Compression Pin Adapter Offset
Specifications
Specifications
Burndy - AYPO600 | 397037 - Product Categories
- Shop by Manufacturer/Burndy
- Communications
- Copper Cabling Infrastructure
- Copper Adapters
- Wiring Connectors
- Connectors and Lugs, Compression
- Terminal Pin Adapter
Burndy - AYPO600 | 397037 - Applications
- Types AYP and AYPO aluminum compression adapters are designed for reliable termination of aluminum and copper conductor in mechanical connectors. Typical applications include mechanical connectors in molded case circuit breakers, panel board equipment and meter sockets.
- All-aluminum electro-tin plated design eliminates possible bi-metallic corrosion and provides the shortest connector length design possible
- Shortest connector length design possible permits easy installation in equipment with limited working space
- Solid electro-tin plated aluminum plug ensures a proper electrical connection made easily. Eliminates "how tight is tight" problem
- Smooth surface on the solid EC aluminum electro-tin plated plug provides greater area contact establishing excellent electrical conductivity
- Solid plug has same diameter as current carrying equivalent copper wire. Permits use of larger aluminum wire to connect equipment
- Offset plug design available in sizes 2/0 through 750 kcmil. Provides flexibility and maximizes the use of limited space eliminating interference between conductors and equipment
- Electro-tin plated to resist corrosion
- Factory prefilled with the proper amount of PENETROX joint compound. PENTROX, BURNDY’s oxide inhibiting compound with conductive metallic particles penetrates aluminum oxide between strands and forms an air-tight connection
- EPDM rubber covers are supplied with each connector to eliminate taping
- Only (5) die sets install the complete line from #6 to 750 kcmil. Lowers inventory requirements and saves money
- Supplied in a plastic convenience pack
- The cover and connector are kept together and free of foreign material until used
- Connectors are clearly marked with catalog number, wire size, and color coded die index to provide clear, easy to use information to lower installed cost
Burndy - AYPO600 | 397037 - Specifications
| UNSPSC Code | 43223300 |
|---|---|
| Country of Origin | United States - Subject to change |
| Adapter Type | Compression Pin Adapter |
| Pin Type | Offset |
| Material | Aluminum |
| Voltage | 35kV |
| Conductor Type | AL Code Cable |
| AWG | 600mcm |
| Insulation | EPDM Rubber |
