Burndy BIBD43 | 2-Sided, 3-Conductor, Clear Insulated Multi-Tap Con...
Regular price
$41.82
Unit price
Brand: Burndy
|
SKU:
BIBD4-3
Regular price
$41.82
Unit price
Description
Description

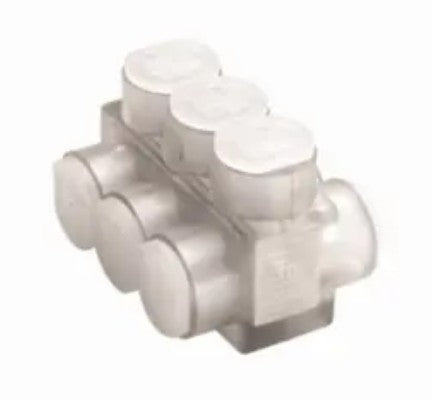

Burndy BIBD43 | 2-Sided, 3-Conductor, Clear Insulated Multi-Tap Connector
Clear Plastisol Covered Double Sided Entry, 3 Ports, #14-4 AWG. Al/Cu Rated. Oxide inhibitor is pre-installed.
Burndy - BIBD43 - Features
- Clear Plastisol covered AL6061-T6 aluminum body saves times and lowers installation costs and eliminates taping
- Clear plastisol allows visual confirmation that conductor is properly inserted
- Oxide inhibitor pre-installed inhibits moisture and contaminants from entering the contact area
- Range-taking capability reduces number of connectors necessary to carry in inventory
Specifications
Specifications
Burndy - BIBD43 - Specifications
| Application | For Indoor Use Only, Copper Or Stranded Aluminum |
|---|---|
| Catalog Number | BIBD43 |
| Connector Type | Multi Tap |
| Hex Key | 1/8 |
| Insulation | Y |
| Insulation Type | Plastisol |
| Material | Aluminum |
| Material - Hardware | Aluminum |
| Number Of Ports | 3 |
| Physical Attribute - Number of Screws | 3 |
| Physical Attribute - Screw Type | Allen |
| Plated | No |
| Plating Type | Unplated |
| Sub Brand | UNITAP |
| Temperature Rating | 194 |
| Trade Name | UNITAP™ |
| Type | BIBD, Multi-Port |
| UPC | 781810223857 |
| UPC 14 Digit GTIN | 00781810223857 |
