Brand: Burndy
|
SKU:
BIBS2/0-3

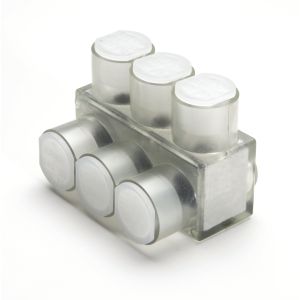

Burndy BIBS2/03 | BIBS2/03 | Unitap, Multiple Tap, 3 Port, Aluminum, Insulated, Clear, 14 SOL, 2/0 STR
Regular price
$46.74
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Burndy BIBS2/03 | BIBS2/03 | Unitap, Multiple Tap, 3 Port, Aluminum...
Regular price
$46.74
Unit price
Description
Description
Burndy BIBS2/03 | BIBS2/03 | Unitap, Multiple Tap, 3 Port, Aluminum, Insulated, Clear, 14 SOL, 2/0 STR
Additional Info: Plastisol Insulation. Prefilled with Oxide Inhibitor
Burndy - BIBS2/03 | BIBS2/03 - Features
- Pre-filled with oxide inhibitor
- Pre-insulated for faster installation
- Contaminant-free due to solid end caps
- Range-taking (reduced need for connector inventory)
- Dual rated AL9CU for copper and aluminum applications
- Multiple configurations accommodate a variety of applications
- Inspectable Insulated Multiple Tap Connector
- Length: 2.19 Inch
- Width: 1.31 Inch
- Height: 1.38 Inch
- Type: Multi-Port, Single-Sided Entry
- Number Of Ports: 3
- Number Of Screws: 3
- Wire Range: 14-2/0 AWG Copper Stranded, 8 AWG-2/0 AWG Aluminum
- Hex Key Size (Torque): 3/16 Inch (120 Inch lb)
- Type Of Hardware/Product Material: AluminumInsulation Type: Plastisol
- Minimum Voltage Rating: 600 Volt
- Type Of Plating: Unplated
Specifications
Specifications
Burndy - BIBS2/03 | BIBS2/03 - Product Categories
- Shop by Manufacturer/Burndy
- Hardware and Supplies
- Electrical Supplies
- Grounding and Bonding
- Wiring Connectors
- Connectors and Lugs, Mechanical
- Cable Taps and Connectors
Burndy - BIBS2/03 | BIBS2/03 - Specifications
| UNSPSC Code | 39121400 |
|---|---|
| Country of Origin | United States - Subject to change |
| Connector Type | Multiple Tap |
| Material | Aluminum, Insulated, Clear |
| Ports | 3 |
| Entry Type | 1 Sided |
| Conductor Type | CU/AL |
| AWG Min | 14 sol |
| AWG Max | 2/0 str |
| Voltage | 600V |
