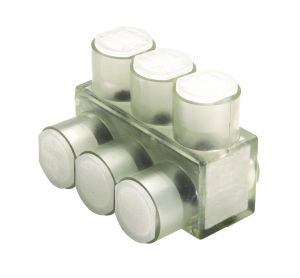

Burndy BIBS2506 | 25018670 | Multi-Tap Connector, CU/AL, 10 AWG to 250 MCM, 600 Volt

Burndy - BIBS2506 | 25018670 - Features

• Pre-filled with oxide inhibitor
• Pre-insulated for faster installation
• Contaminant-free due to solid end caps
• Range-taking (reduced need for connector inventory)
• Dual rated AL9CU for copper and aluminum applications
• Multiple configurations accommodate a variety of applications
• Inspectable Insulated Multiple Tap Connector
• Length: 5.78 Inch
• Width: 2..07 Inch
• Height: 2.13 Inch
• Type: Multi-Port, Single-Sided Entry
• Number Of Ports: 6
• Wire Range: 10 AWG-250 KCMIL Copper Stranded, 8 AWG-250 KCMIL Aluminum
• Hex Key Size (Torque): 5/16 Inch (275 Inch lb)
• Type Of Hardware/Product Material: AluminumInsulation Type: Plastisol
• Minimum Voltage Rating: 600 Volt
