Brand: Burndy
|
SKU:
3701386-JBT

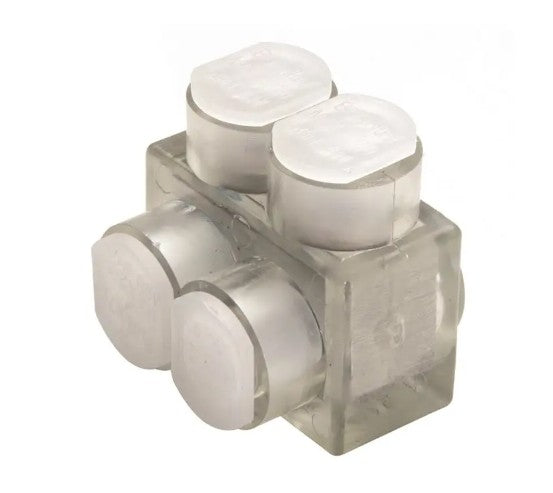

Burndy BIT2/0 | Single-Sided, 2-Conductor, 2/0 AWG, Clear Insulated Multi-Tap Connector
Regular price
$23.60
Unit price
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Burndy BIT2/0 | Single-Sided, 2-Conductor, 2/0 AWG, Clear Insulated...
Regular price
$23.60
Unit price
Brand: Burndy
|
SKU:
3701386-JBT
Regular price
$23.60
Unit price
Description
Description
Burndy BIT2/0 | Single-Sided, 2-Conductor, 2/0 AWG, Clear Insulated Multi-Tap Connector
Clear Plastisol Covered Aluminum Multiple Tap Connector. 1-Side Entry, 2-Port. Suitable for Code Conductor, #14-2/0 AWG, Al/Cu Rated, UL486B Listed.
Burndy - BIT2/0 - Features
- Type BIT and BITO (Offset) Multi-tap connectors are installed quickly and easily
- Suitable for use on Code conductor
- UL486B Listed, Dual-rated AL9CU.
Specifications
Specifications
Burndy - BIT2/0 - Specifications
| Application | For Indoor Use Only, Copper Or Stranded Aluminum |
|---|---|
| Catalog Number | BIT2/0 |
| Connector Type | Multi Tap |
| Hex Key | 3/16 in |
| Installation Torque Recommended in-lb | 120 in-lb |
| Insulation | Y |
| Insulation Type | Plastisol |
| Material | Aluminum |
| Material - Hardware | Aluminum |
| Number Of Ports | 2 |
| Physical Attribute - Number of Screws | 2 |
| Physical Attribute - Screw Type | Allen |
| Plated | No |
| Plating Type | Unplated |
| Sub Brand | UNITAP |
| Temperature Rating | 90 °C |
| Trade Name | UNITAP™ |
| Type | BIT |
| UPC | 781810134061 |
| UPC 14 Digit GTIN | 00781810134061 |
