Burndy FD65C6T14 | Copper Substation Stud Connector
Regular price
$324.28
Unit price
Brand: Burndy
|
SKU:
FD65C6T14
Regular price
$324.28
Unit price
Description
Description

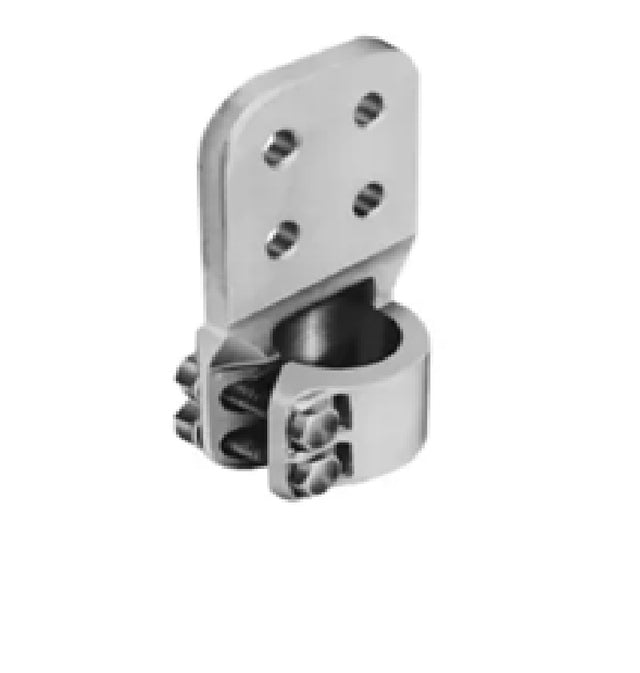

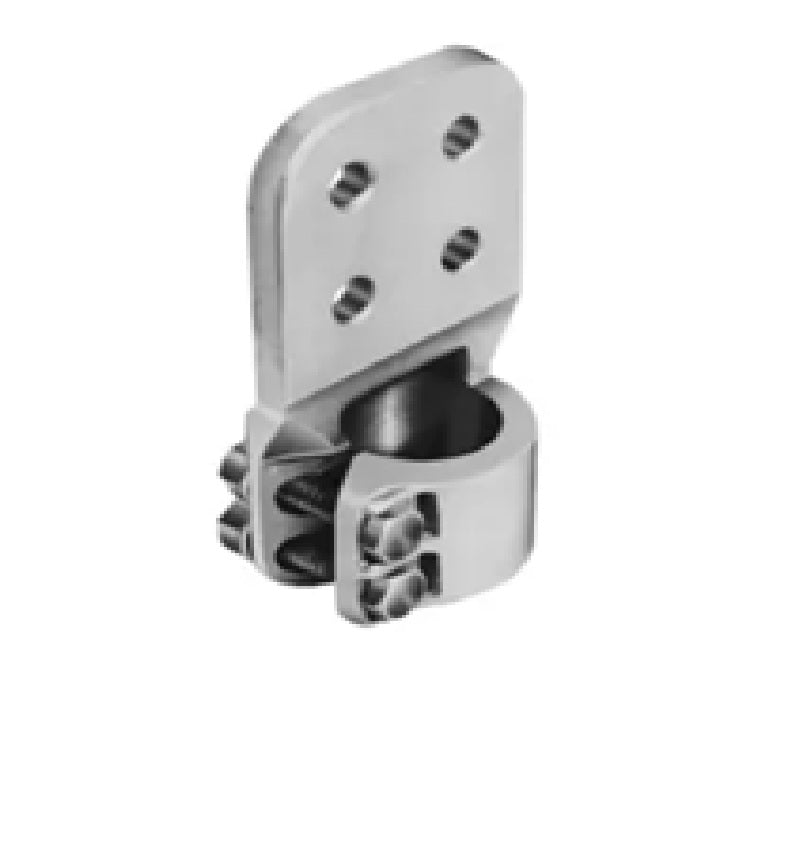

Burndy FD65C6T14 | Copper Substation Stud Connector
Cast Cu Alloy Substation Stud Connector, Bolted, Stud to Pad, 1" - 14 Stud, 230 kV, Silicon Bronze H/W, 1075 Amp.
Burndy - FD65C6T14 - Features
- High copper alloy stud connector allows bolting cable and tubing terminals to equipment studs
- Hex head captured bolts provide one-wrench installation
- One pad contact surface is on centerline of stud, pad is finished on both sides, all pads are 4-hole NEMA drilling
Specifications
Specifications
Burndy - FD65C6T14 - Specifications
| Application | Substation |
|---|---|
| Catalog Number | FD65C6T14 |
| Connector Type | Stud Connector |
| Material | Copper Alloy |
| Material - Hardware | DURIUM™ Silicon Bronze |
| Plated | No |
| Plating Type | Unplated |
| Type | Studs |
| UPC | 781810003633 |
| UPC 14 Digit GTIN | 00781810003633 |
