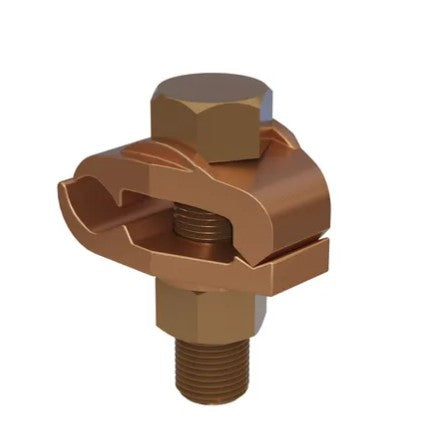

Burndy GB29 | Mechanical Grounding Connector, Cable to Bus Bar
Regular price
$81.18
Unit price
Brand: Burndy
|
SKU:
CC410665-032
Regular price
$81.18
Unit price
Description
Description
Burndy GB29 | Mechanical Grounding Connector, Cable to Bus Bar
Mechanical Grounding Connector, Cable to 1/4" Thick Bar, 550 kcmil-750 kcmil, 5/8" Stud, Silicon Bronze Hardware.
Burndy - GB29 - Features
- High copper alloy ground connector for joining a range of cable to 1/4" thick bar
- Type GB separates cable from bar
- Silicon Bronze Hardware
- Rated for Direct Burial in earth or concrete
- UL467
Specifications
Specifications
Burndy - GB29 - Specifications
| Application | For Copper Cable To Bar, Direct Burial Cable |
|---|---|
| Catalog Number | GB29 |
| Installation Torque Recommended in-lb | 480 lb-in |
| Material | Copper Alloy |
| Material Type - Screw | DURIUM™ Silicon Bronze |
| Physical Attribute - Screw Type | Hexagonal Bolt |
| Plated | No |
| Plating Type | Unplated |
| Sub Brand | MECHANICAL CONNECTOR |
| Type | GB |
| UPC | 781810231272 |
| UPC 14 Digit GTIN | 00781810231272 |
