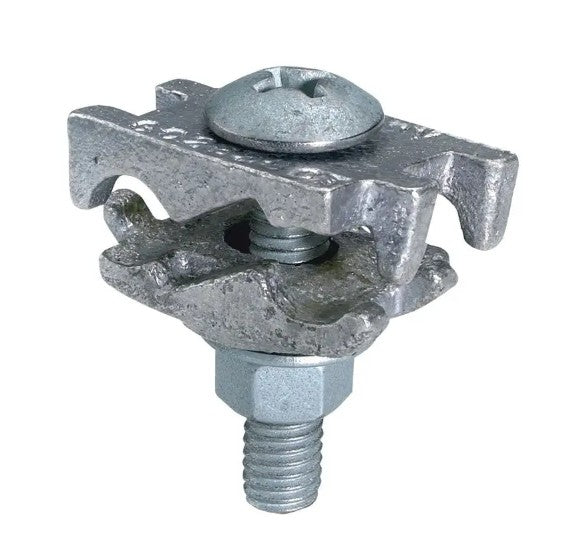

Burndy GC2525CT | Mechanical Ground Connector, One or Two Cables to Bus Bar
Cast Cu Alloy Mechanical Grounding Cable Tray Clamp, #6 Sol. (.162 Dia.) -1/0 Str. (.372 Dia.) Al/Cu Rated, 3/8" Stud, Galvanized Steel Hardware.
Burndy - GC2525CT - Features
- Cable Tray Ground Clamp of tin-plated cast copper
- Accommodates either one or two conductors, copper or aluminum cable
- Low profile head with deep Phillips recess
- Galvanized steel bolt has ribbed neck preventing rotation during installation when installed in a 0.44 diameter hole
- Rated for Direct Burial in earth or concrete
- UL467 Listed for the US and Canadian Markets with copper conductor only
Specifications
Specifications
Burndy - GC2525CT - Specifications
| Application | For Direct Burial Applications In Concrete Or Earth And For Used With Aluminum Or Galvanized Steel Cable Tray |
|---|---|
| Catalog Number | GC2525CT |
| Installation Torque Recommended in-lb | 240 lb-in |
| Material | Copper Alloy |
| Plated | Yes |
| Plating Type | Tin |
| Sub Brand | MECHANICAL CONNECTOR |
| Type | GC-CT |
| UPC | 781810035504 |
| UPC 14 Digit GTIN | 00781810035504 |
