Burndy HSC112FR100FT | 501040 | Heat Shrink Tubing, 0.04 Inch T Wal...
Description
Description

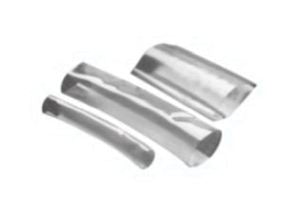

Type HSC-FR is a flexible polyvinyl chloride clear heat-shrink tubing. Excellent flame retardant properties and a 2:1 shrink ratio, the VISI-SHRINK tubing enables inspectors to read die index embossments on installed connectors easily. UL Recognized, 1 05C, 600V, the operating temperature from -20C to 105C with a shrink temperature of 135C.
Type HSC-FR is a flexible polyvinyl chloride clear heat shrink tubing. Excellent flame-retardant properties and a 2:1 shrink ratio, the VISI-SHRINK tubing enables inspectors to read die index embossments on installed connectors easily. UL recognized, 105°
Burndy - HSC112FR100FT | 501040 - Features
- UL 224, VW-1 Rated
- Clear Tubing
- Low Shrink Temperature
- Meets MIL-M-23053/Z-206C
Specifications
Specifications
Burndy - HSC112FR100FT | 501040 - Product Categories
- Shop by Manufacturer/Burndy
- Hardware and Supplies
- Cable Management
- Tubing
- Wiring Connectors
- Shrink-On Tubing and Accessories
- Tubing
Burndy - HSC112FR100FT | 501040 - Specifications
| Heat Shrink | Yes Is Shrink Tubing |
|---|---|
| Dual | No |
| Material/Type | Pvc-Black Polyvinylchloride, Contaminating |
| Military Color Code | Clear |
| Size By Inch Fractions | 1 1/2 Inch |
| MIL SPEC | No |
| Sleeving | No |
| Spiral Wrap | No |
| UL | No |
| ZIPPER | No |
| WALL TYPE| Single Or Dual | Single Wall |
| UNSPSC Code | 39121723 |
| Country of Origin | United States - Subject to change |
| Tubing Type | Heat Shrink Tubing |
| Size | Wall T: 0.04 in. |
| Voltage | 600V |
| Temperature Rating | -20° to +105°C |
| I.D. Recovered | 3/4 in. |
| Wire Max | 750 MCM Code, 500 MCM Flex |
| Wire Min | 350 MCM Code, 250 MCM Flex |
| Color | Clear |
