Burndy HSIC10500FR | 26000877 | Heavy Wall Heat Shrink Cable Cap Black
Description
Description

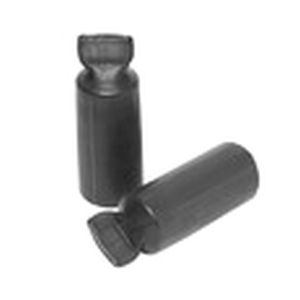

Type HSIC-FR, Heat Shrink Insulating End Cap Fire Retardant is a heavy wall, fire retardant end cap made of cross-linked thermally stabilized black polyolefin. Used to insulate exposed conductors in energized applications. The 3:1 shrink ratio offers greater range, accommodating copper wire sizes, #8 AWG thru 2500+ kcmil. Performs effectively over lead, aluminum, steel, polyethylene, EPR, and PVC jacketed materials. Blue thermal chromatic lines disappear indicating correct installation temperature and provide inspectability. I.D. adhesive provides superior moisture and weather-resistant characteristics.
Additional Info: Material: Polyolefin
Burndy - HSIC10500FR | 26000877 - Features
- Minimum 28 Oxygen index, UL94-VO rated
- 3:1 shrink ratio
- Thermal chromatic lines
- Low shrink temperature, 150C
- Meets sealing requirements: ANSI-C119.1, UL486D
Specifications
Specifications
Burndy - HSIC10500FR | 26000877 - Product Categories
- Shop by Manufacturer/Burndy
- Hardware and Supplies
- Cable Management
- Tubing
- Wiring Connectors
- Shrink-On Tubing and Accessories
- Shrink-On Tubing Caps
Burndy - HSIC10500FR | 26000877 - Specifications
| Heat Shrink | No Is Not Shrink Tubing |
|---|---|
| Dual | No |
| Military Color Code | Black |
| MIL SPEC | No |
| Sleeving | No |
| Spiral Wrap | No |
| UL | Yes |
| ZIPPER | No |
| UNSPSC Code | 39121723 |
| Country of Origin | Canada - Subject to change |
| Type | Heat Shrink Cable Cap |
| Voltage | 600V |
| Wall Type | Heavy Wall |
| Shrink Ratio | 3 to 1 |
| Recovered Inside Diameter | 0.35 in. |
| AWG Min | 1/0 |
| AWG Max | 500mcm |
| Color | Black |
