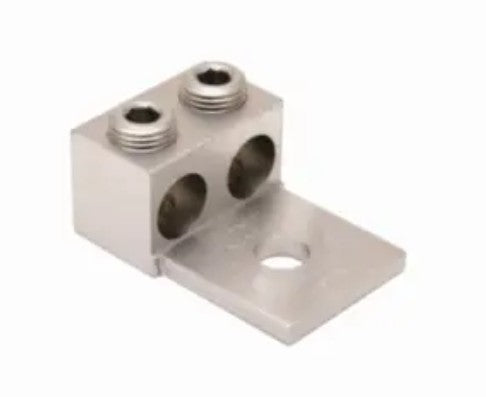

Burndy K2A44U | Aluminum Universal Terminal, 2-Conductor, 1-Hole
Regular price
$45.51
Unit price
Brand: Burndy
|
SKU:
K2A44U
Regular price
$45.51
Unit price
Description
Description
Burndy K2A44U | Aluminum Universal Terminal, 2-Conductor, 1-Hole
Aluminum Universal Terminal, 2 Conductor, 1 Hole, 500-1000 kcmil, 5/8" Stud, 2 Screws, Al/Cu Rated, Tin Plated.
Burndy - K2A44U - Features
- Dual rated panelboard lugs
- Constructed from high strength, extruded aluminum alloy
- Electro tin-plated to provide low contact resistance
Specifications
Specifications
Burndy - K2A44U - Specifications
| Catalog Number | K2A44U |
|---|---|
| Connector Type | Parallel Set-Screw |
| Hardware Type | 3/8 UNC Slotted Set Screw |
| Installation Torque Recommended in-lb | 500 LBS/in |
| Material | Aluminum |
| Material - Hardware | Aluminum |
| Physical Attribute - Number of Holes | 1 |
| Physical Attribute - Screw Type | Slot |
| Plated | No |
| Plating Type | Tin |
| Temperature Rating | 194 |
| Type | Bolted Lugs & Terminals |
| UPC | 781810600306 |
| UPC 14 Digit GTIN | 00781810600306 |
