Burndy KA29U | Aluminum Set Screw Terminal, Dual-Rated, 1-Hole
Regular price
$7.64
Unit price
Description
Description

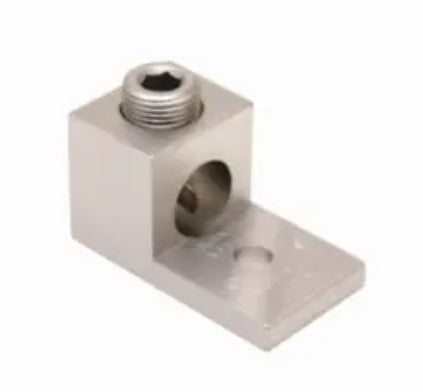

Burndy KA29U | Aluminum Set Screw Terminal, Dual-Rated, 1-Hole
Aluminum Universal Terminal, 1 Hole, 6 AWG (Str)-250 kcmil, 5/16" Stud, 1 Screw, Al/Cu Rated, Tin Plated.
Burndy - KA29U - Features
- Dual Rated Panelboard Lugs
- High strength extruded aluminum alloy
- Electro tin-plated for low contact resistance
- Rated to 35kV
Specifications
Specifications
Burndy - KA29U - Specifications
| Application | For Aluminum And Copper Conductors |
|---|---|
| Catalog Number | KA29U |
| Connector Type | Terminal |
| Installation Torque Recommended in-lb | 275 LBS/in |
| Material | Aluminum |
| Material - Hardware | Aluminum |
| Physical Attribute - Number of Holes | 1 |
| Physical Attribute - Number of Screws | 1 |
| Physical Attribute - Screw Type | Allen |
| Plated | Yes |
| Plating Type | Tin |
| Sub Brand | UNIVERSAL TERM |
| Temperature Rating | 194 |
| Type | Bolted Lugs & Terminals |
| UPC | 781810370155 |
| UPC 14 Digit GTIN | 00781810370155 |
